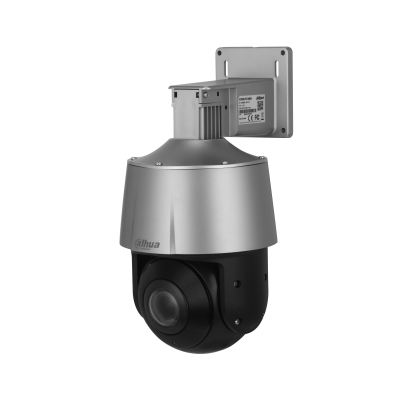

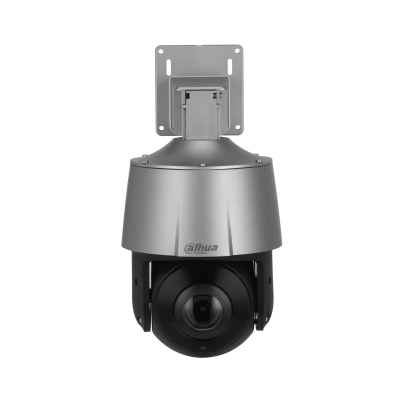

Dahua Technology SD3A200-GNP-PV security camera Spherical IP security camera Indoor & outdoor
Dahua Technology

SD3A200-GNP-PV security camera Spherical IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD3A200-GNP-PV

70 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.1 kg
  • ColourBlack, Grey
  • Form factorSpherical
  • Minimum illumination0.002 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.1 kg
Colour
Black, Grey
Form factor
Spherical
Minimum illumination
0.002 lx
Brand
Dahua Technology
Model
SD3A200-GNP-PV
Part number
SD3A200-GNP-PV
Also known as
Dahua Technology SD3A200-GNP-PV security camera Spherical IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

70 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE:EN55032/EN55024/EN50130-4/EN 55035/EN 61000-3-2/EN 61000-3-3/EN 62368-1 FCC: Part15 subpartB, ANSI C63.4- 2014

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourBlack, Grey
International Protection (IP) codeIP66

Camera

Minimum illumination0.002 lx
Lens viewing angle, horizontal86.8°
Lens viewing angle, vertical45.9°
Lens viewing angle, diagonal102.4°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 56 °/sec
Tilt preset speed43 °/sec
Pan range0 - 355°
Pan manual speed0.1 - 80 °/sec
Pan preset speed81 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")

Lens system

Number of lenses1
Detect distance55 m
Observe distance22 m
Recognize distance10.6 m
Focal length range4 mm
Identify distance4.6 m
Minimum aperture number1.6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Flash memory512 MB
ROM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoC
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width142.5 mm
Depth271.7 mm
Height124.1 mm
Weight1.1 kg

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
ManualYes
