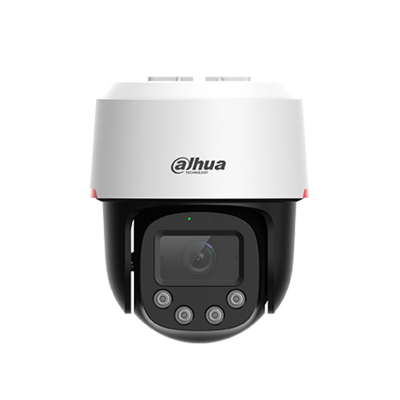

Dahua Technology WizSense SD2C400NA-B-PV-PRO Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense SD2C400NA-B-PV-PRO Turret IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model SD2C400NA-B-PV-PROPart no. DH-SD2C400NA-B-PV-PRO

96 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight660 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
660 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
SD2C400NA-B-PV-PRO
Part number
DH-SD2C400NA-B-PV-PRO
Also known as
Dahua Technology WizSense SD2C400NA-B-PV-PRO Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

96 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset point
Day/night modeYes
CertificationCE

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourWhite
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Lens viewing angle, horizontal97°
Lens viewing angle, vertical52°
Lens viewing angle, diagonal114°
Tilt angle range0 - 90°
Tilt manual speed0.1 - 36.4 °/sec
Tilt preset speed36.3 °/sec
Pan range0 - 345°
Pan manual speed0.1 - 34.5 °/sec
Pan preset speed33.8 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Detect distance70.34 m
Observe distance28.14 m
Recognize distance14 m
Identify distance7.03 m
Minimum aperture number1
Closest focusing distance2.6 m
Fixed focal length4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeWhite
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2550 x 1440
Supported video modes720p, 1080p
Video recordingYes
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH264: 3,072 kbps–15,104 kbps H265: 1,280 kbps–9,216 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP;HTTPS;TCP/ IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802. 1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;NFS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity256 MB
RAM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes
Management softwareDMSS;5 Series NVR;DSS Pro

Power

Power source typeDC, PoE
Power consumption (max)9.5 W
Power consumption (Power over Ethernet (PoE))3.6 W
DC output voltage12
DC output current1 A

Operational conditions

Operating temperature (T-T)-30 - 55 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter12.9 cm
Length153.5 mm
Weight660 g

Packaging data

Package weight1 kg

Packaging content

Number of cameras1
