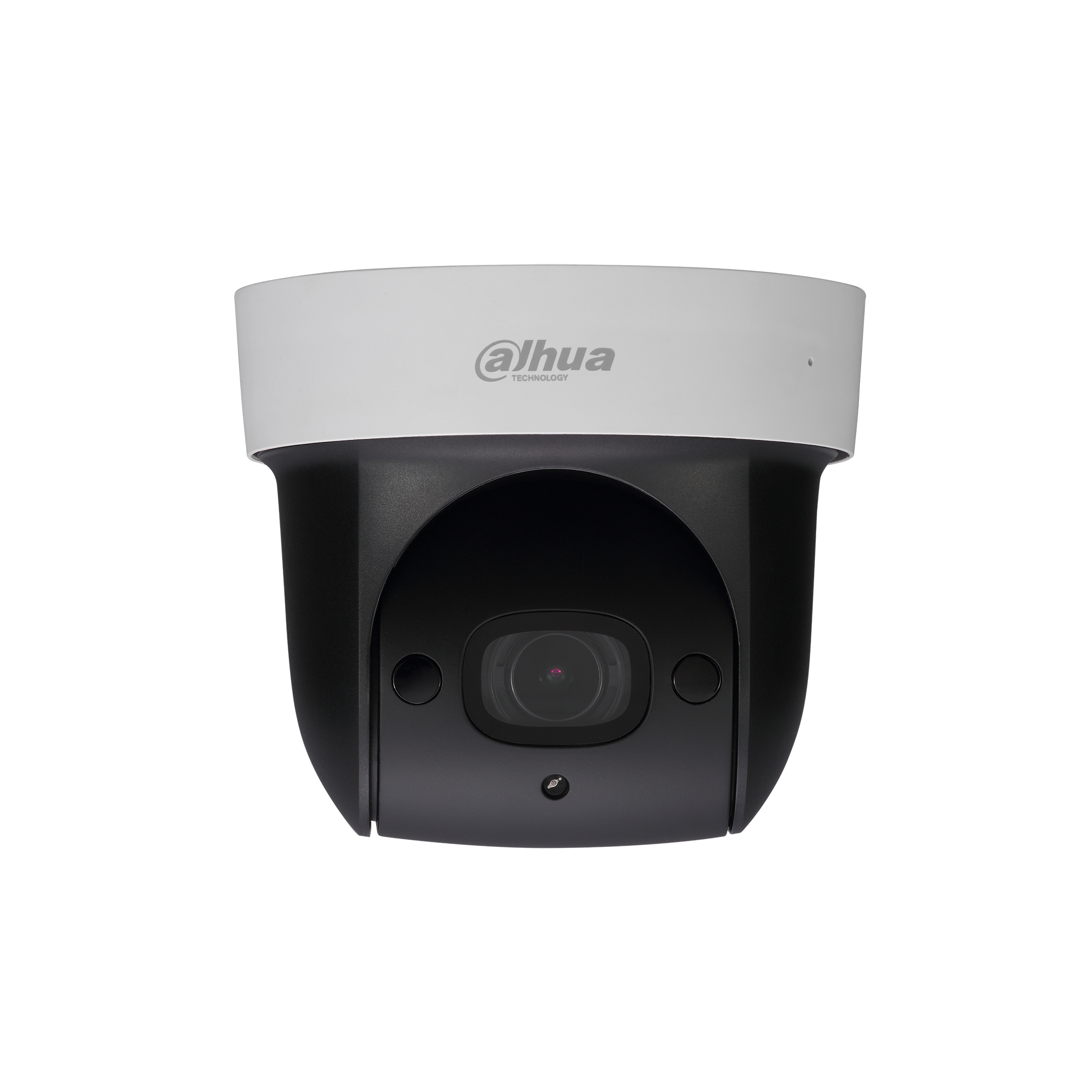

Dahua Technology Lite SD29204T-GN Dome IP security camera

Dahua Technology Lite SD29204T-GN Dome IP security camera

1920 x 1080 pixels Ceiling/wall

Model SD29204T-GNPart no. 1.0.01.07.11287EAN 6939554922152

105 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight950 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
950 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
SD29204T-GN
Part number
1.0.01.07.11287
EAN / UPC
6939554922152, 8058258764740
Also known as
Dahua Technology Lite SD29204T-GN Dome IP security camera 1920 x 1080 pixels Ceiling/wall

Specifications

105 specifications in 21 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
Fog proofYes

Camera

Minimum illumination0.05 lx
Tilt angle range0 - 90°
Tilt preset speed60 °/sec
Tilt speed60 °/sec
Pan range0 - 360°
Pan preset speed60 °/sec
Pan speed100 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/3 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance120 m
Observe distance48 m
Recognize distance24 m
Focal length range2.7 - 11 mm
FocusMotorized/Manual
Identify distance12 m
Maximum aperture number2.8
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedPCM
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes
Voice codecsG.711u, G.711a

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Flash memory256 MB
Internal memory128 MB

Ports & interfaces

DC-in jackYes
InterfaceRJ-45

Security

Auto restore after power failureYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS

Power

Power source typePoE
Power consumption (typical)10 W
DC output voltage12
DC output current1.5 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid

Weight & dimensions

Diameter13.3 cm
Length116.5 mm
Weight950 g

Packaging data

Package weight1 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE, Chrome, Firefox, Safari
IR controlAuto, Manual

Technical details

Number of video streams3
