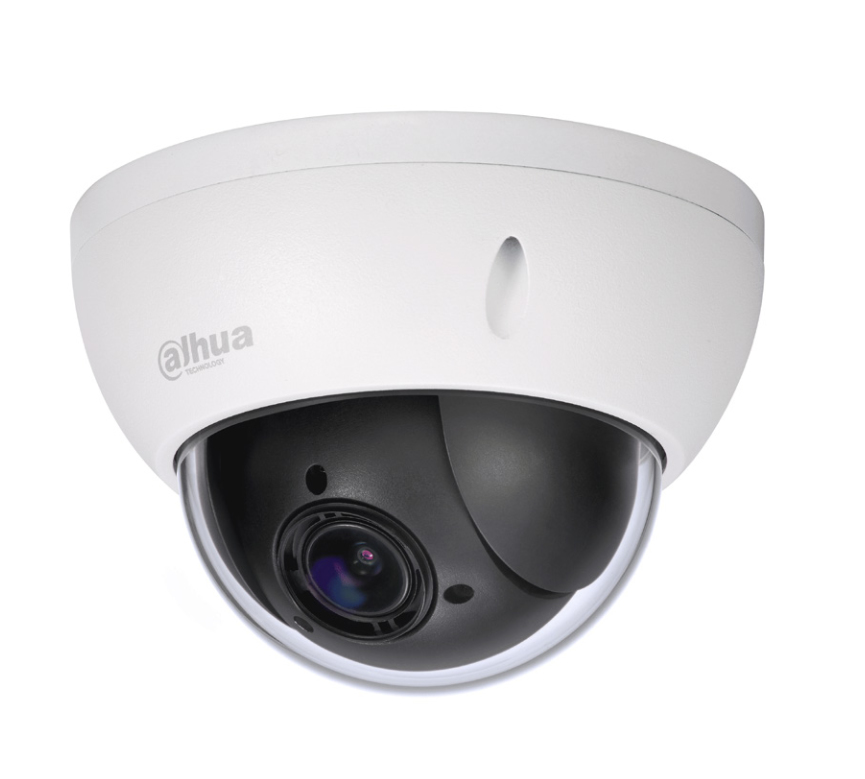

Dahua Technology Lite SD22204UEN-GN Dome IP security camera Indoor & outdoor
Dahua Technology

Lite SD22204UEN-GN Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD22204UEN-GNPart no. DH-SD22204UEN-GNEAN 6923172516923

94 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight520 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
520 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD22204UEN-GN
Part number
DH-SD22204UEN-GN
EAN / UPC
6923172516923, 6939554964374
Also known as
Dahua Technology Lite SD22204UEN-GN Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

94 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset sequence
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE, FCC, UL

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Lens viewing angle, horizontal112.5°
Tilt angle range0 - 90°
Tilt speed60 °/sec
Pan range0 - 355°
Pan preset speed100 °/sec
Pan speed100 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance124.1 m
Observe distance49.7 m
Recognize distance24.8 m
Focal length range2.7 - 11 mm
FocusMotorized/Manual
Identify distance12.4 m
Maximum aperture number1.6
Closest focusing distance0.1 m

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
NTSC resolutions1920 x 1080 pixels
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate448K - 8192Kbps, 5120K - 10240Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC
Power consumption (max)5.5 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height89 mm
Diameter12.2 cm
Weight520 g

Packaging data

Package weight730 g
Package typeBox

Packaging content

Number of cameras1
