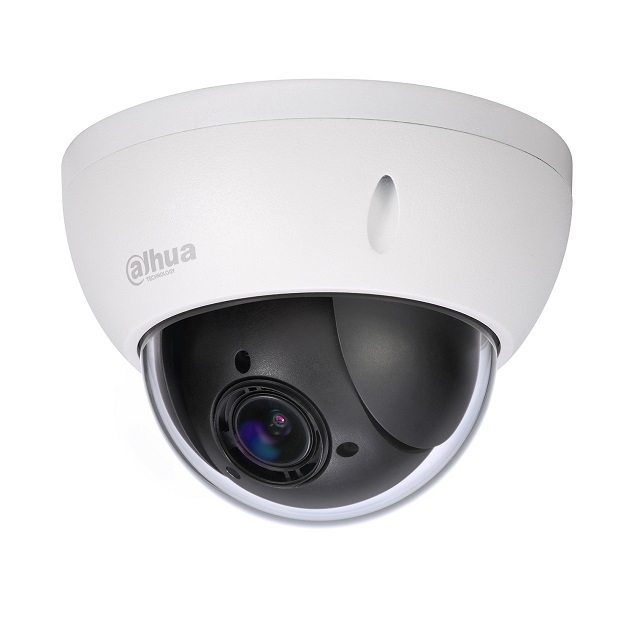

Dahua Technology SD22204GN security camera Dome IP security camera Indoor & outdoor
Dahua Technology

SD22204GN security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD22204GN

95 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight660 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
660 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
SD22204GN
Part number
SD22204GN
Also known as
Dahua Technology SD22204GN security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

95 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Auto pan
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK10
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Field of view (FOV) angle112.5°
Angle of rotation180°
Tilt angle range0 - 90°
Tilt speed60 °/sec
Pan range0 - 355°
Pan preset speed100 °/sec
Pan speed100 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter speed1/1 ~ 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Focal length range2.7 - 11 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number1.6
Closest focusing distance1 m
Detect distance (wide)120 m
Identify distance (wide)12 m
Observe distance (wide)48 m
Recognize distance (wide)24 m

Night vision

Night visionNo

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes240p, 480p, 576p, 720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF, PSIA, CGI
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (Power over Ethernet (PoE))10 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height89 mm
Diameter12.2 cm
Weight660 g

Packaging data

Package weight710 g
Package typeBox

Packaging content

Number of cameras1
