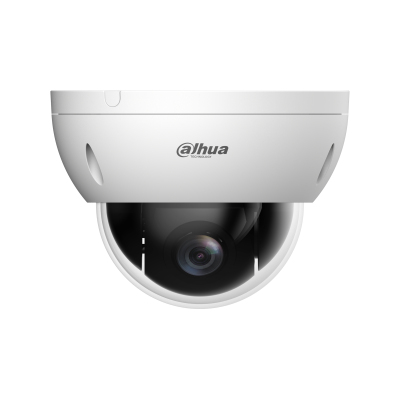

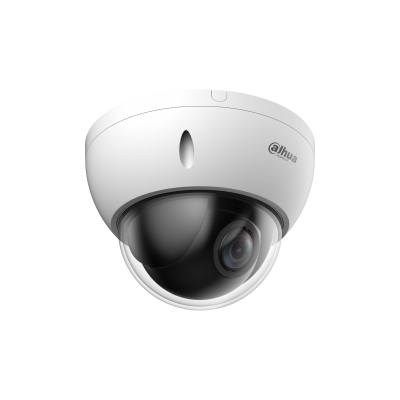

Dahua Technology SD22204DBN-GC Dome CCTV security camera Indoor & outdoor
Dahua Technology

SD22204DBN-GC Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model SD22204DBN-GCPart no. DH-SD22204DBN-GCEAN 6923172591425

83 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
CCTV security camera
Weight
600 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD22204DBN-GC
Part number
DH-SD22204DBN-GC
EAN / UPC
6923172591425
Also known as
Dahua Technology SD22204DBN-GC Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

83 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset point
PTZ protocolsDH-SD, Pelco-P/D
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpart B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
International Protection (IP) codeIP66
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Lens viewing angle, horizontal99.1 - 31.9°
Lens viewing angle, vertical53.4 - 18°
Lens viewing angle, diagonal117.7 - 36.6°
Tilt angle range0 - 90°
Tilt manual speed0.1 - 60 °/sec
Tilt preset speed60 °/sec
Pan range0 - 355°
Pan manual speed0.1 - 100 °/sec
Pan preset speed100 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Detect distance151.7 m
Observe distance59.9 m
Recognize distance30.3 m
Focal length range2.7 - 11 mm
FocusMotorized/Manual
Identify distance15.2 m
Maximum aperture number3
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionNo

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

RS-485 ports1
BNC output ports1
DC-in jackYes

Power

Power source typeDC
Power consumption (typical)7 W
Power consumption (max)9 W
DC output voltage12
DC output current1 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight600 g

Packaging data

Package weight650 g
Package typeBox

Packaging content

Number of cameras1
