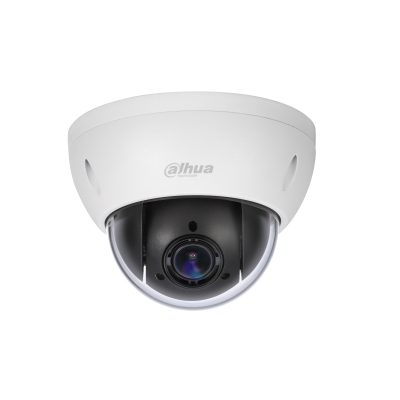

SD22204-GC-LB Dome CCTV security camera Indoor
1920 x 1080 pixels Ceiling
Model SD22204-GC-LBPart no. DH-SD22204-GC-LBEAN 6939554949135
46 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight600 g
- ColourWhite
- Form factorDome
- Minimum illumination0.05 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 600 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.05 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD22204-GC-LB
- Part number
- DH-SD22204-GC-LB
- EAN / UPC
- 6939554949135
- Also known as
- Dahua Technology SD22204-GC-LB Dome CCTV security camera Indoor 1920 x 1080 pixels Ceiling
Specifications
46 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 8 Tour, Auto pan |
| Day/night mode | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.05 lx |
| Lens viewing angle, horizontal | 112.5° |
| Lens viewing angle, vertical | 39° |
| Tilt angle range | 0 - 90° |
| Tilt preset speed | 255 °/sec |
| Tilt speed | 60 °/sec |
| Pan range | 0 - 355° |
| Pan speed | 100 °/sec |
| Auto flip | Yes |
| White balance | ATW, Indoor, Manual, Outdoor |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Effective sensor resolution | 2 pixels |
| Number of effective pixels (H x V) | 1944 x 1092 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 4x |
| Digital zoom | 16x |
| Normal focusing range | 0.1 - 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Privacy masking | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | PoC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | 0 - 95 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 89 mm |
| Diameter | 12.2 cm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
