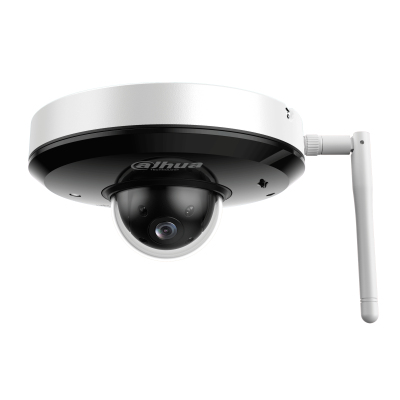

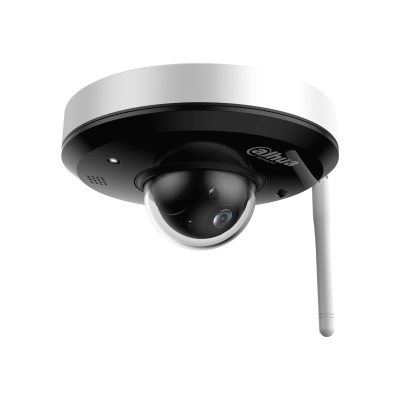

Dahua Technology SD1A404DB-GNY-W-PV Bulb IP security camera
Dahua Technology

SD1A404DB-GNY-W-PV Bulb IP security camera

2560 x 1440 pixels Ceiling

Model SD1A404DB-GNY-W-PVPart no. DH-SD1A404DB-GNY-W-PVEAN 6923169761251

116 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorBulb
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Bulb
Brand
Dahua Technology
Model
SD1A404DB-GNY-W-PV
Part number
DH-SD1A404DB-GNY-W-PV
EAN / UPC
6923169761251
Also known as
Dahua Technology SD1A404DB-GNY-W-PV Bulb IP security camera 2560 x 1440 pixels Ceiling

Specifications

116 specifications in 20 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset point
PTZ protocolsDH-SD
Tour recordingYes
Preset pointsYes
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
Light exposure modesIRIS priority AE

Design

Form factorBulb
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66
IK codeIK08

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation180°
Lens viewing angle, horizontal96.9°
Lens viewing angle, vertical51.4°
Lens viewing angle, diagonal116.2°
Tilt angle range5 - 90°
Tilt preset speed40 °/sec
Tilt speed30 °/sec
Pan range0 - 355°
Pan preset speed80 °/sec
Pan speed70 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter speed1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Detect distance240 m
Observe distance94.8 m
Recognize distance48 m
Focal length range2.8 - 12 mm
Auto focusYes
FocusMotorized/Manual
Identify distance24 m
Maximum aperture number2.7
Minimum aperture number1.8
Closest focusing distance0.5 m

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.264B, H.265+, MPEG2
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio system1-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.722.1, PCM
Built-in microphoneYes
Number of microphones1
Voice codecsG.711Mu, G.711a, G.726
Audio detectionYes
Bit rate range96 - 14.848 Kbit/s

Network

Ethernet LANYes
Wi-FiYes
Networking standardsIEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocolsFTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity256 MB
RAM capacity512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Alert notification typeE-mail, Snapshot alert message
Detection distance20 m
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Line crossing detection, Missing object, People counting, Tripwire
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC
Power consumption (typical)4 W
Power consumption (max)13 W
DC output voltage12
DC output current10 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height65.7 mm
Diameter12.8 cm
Weight500 g

Sustainability

Compliance certificatesCE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Packaging data

Package weight700 g

Packaging content

Number of cameras1
Mounting kitYes
Mounting brackets includedYes
Memory card includedMicroSD
Included memory card size512 GB
