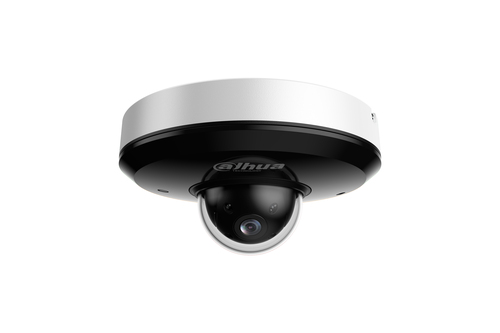

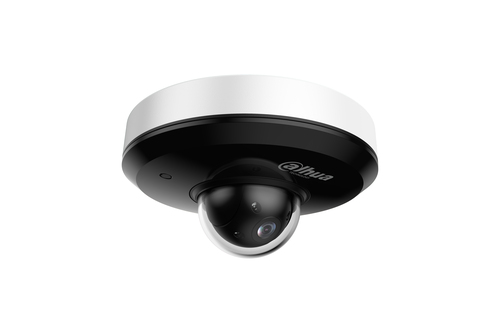

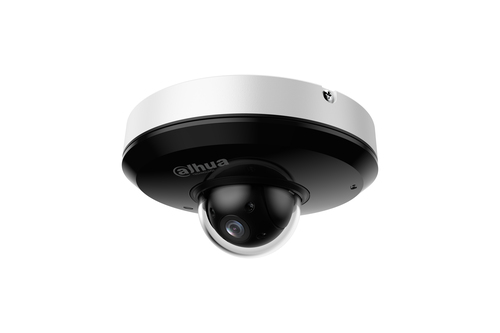

Dahua Technology SD1A404DB-GNY Dome IP security camera Indoor & outdoor
Dahua Technology

SD1A404DB-GNY Dome IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model SD1A404DB-GNYPart no. DH-SD1A404DB-GNYEAN 6923172590367

95 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
SD1A404DB-GNY
Part number
DH-SD1A404DB-GNY
EAN / UPC
6923172590367
Also known as
Dahua Technology SD1A404DB-GNY Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

95 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Preset point
PTZ protocolsDH-SD
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
LED indicatorsYes
International Protection (IP) codeIP66
IK codeIK08

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Tilt angle range5 - 90°
Tilt manual speed0.1 - 30 °/sec
Tilt preset speed0.1 °/sec
Pan range0 - 355°
Pan manual speed0.1 - 70 °/sec
Pan preset speed0.1 °/sec
White balanceIndoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 28 mm (1 / 28")
Progressive scanYes

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)55 dB

Lens system

Number of lenses1
Optical zoom4x
Digital zoom16x
Focal length range2.8 - 12 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number2.7
Minimum aperture number1.8
Closest focusing distance0.2 m
Detect distance (wide)240 m
Identify distance (wide)24 m
Observe distance (wide)94.8 m
Recognize distance (wide)48 m

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Infra-red LEDs life3 h

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsFTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity256 MB
RAM capacity512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Crossing line, Face detection, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Management softwareDMSS; DSS Pro

Power

Power source typeDC, PoE
Power consumption (typical)4 W
Power consumption (max)13 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height65.7 mm
Diameter12.8 cm
Weight500 g

Packaging data

Package weight700 g

Packaging content

Number of cameras1
