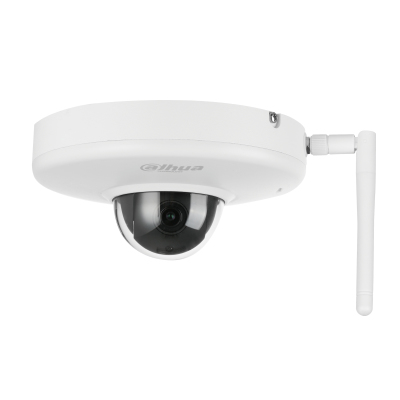

Dahua Technology SD12203T-GN-W Dome IP security camera Indoor & outdoor
Dahua Technology

SD12203T-GN-W Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD12203T-GN-WPart no. DH-SD12203T-GN-W

90 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight485 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
485 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
SD12203T-GN-W
Part number
DH-SD12203T-GN-W
Also known as
Dahua Technology SD12203T-GN-W Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

90 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
People counting functionYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP66
IK codeIK08
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal105.6 - 35.2°
Tilt angle range5 - 90°
Pan range0 - 355°
Auto flipYes
White balanceAuto, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom16x
Digital zoom100.4x
Detect distance40.2 m
Observe distance20.1 m
Focal length range2.7 - 8.1 mm
Auto focusYes
Identify distance10 m
Minimum aperture number1.8
Normal focusing range10 - 10 m

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Flash memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Active tampering alarmYes
Motion sensorYes
Privacy protectionYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid

Weight & dimensions

Height63 mm
Diameter12.8 cm
Weight485 g

Packaging data

Package weight700 g

Packaging content

Number of cameras1
ManualYes
