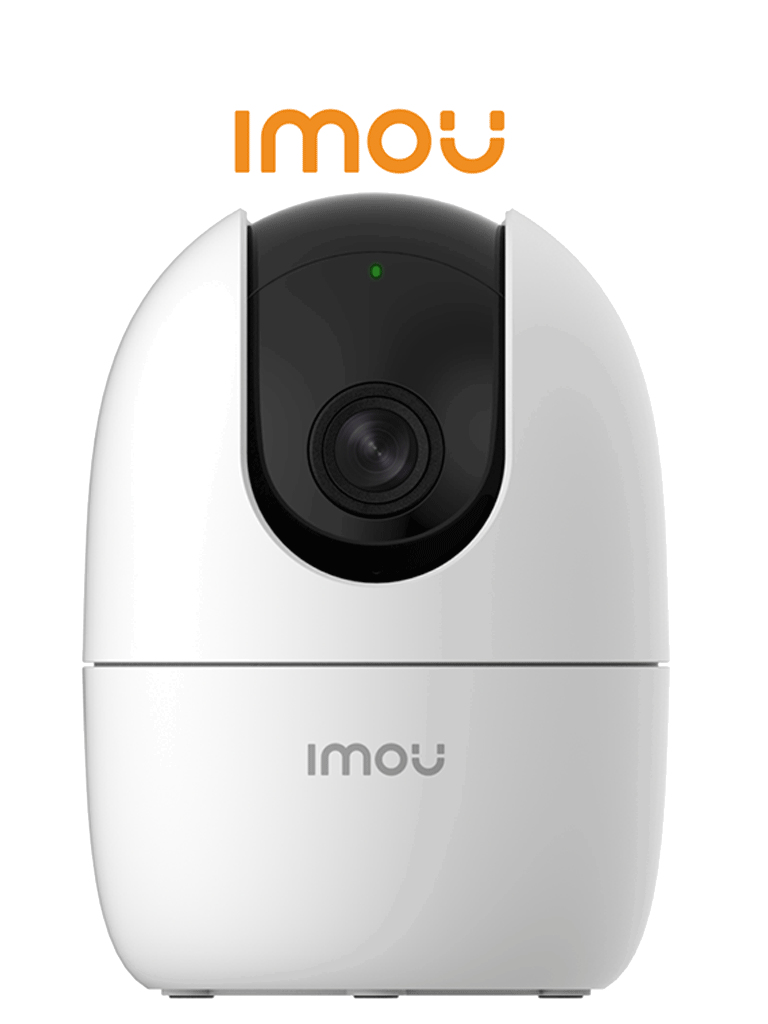

Ranger 2
Model Ranger 2Part no. IPC-A42N-B
65 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight238 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 238 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- Ranger 2
- Part number
- IPC-A42N-B
- Also known as
- Dahua Technology IMOU Ranger 2 Turret IP security camera Indoor 2560 x 1440 pixels Ceiling/Desk
Specifications
65 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired & Wireless |
| Auto-tracking | Yes |
| Auto pan mode | Yes |
| Tour recording | Yes |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Remote viewing | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Desk |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Field of view (FOV) angle | 92° |
| Lens viewing angle, horizontal | 93° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 115° |
| Tilt angle range | -5 - 80° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 16x |
| Detect distance | 10 m |
| Lens diameter | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.265 |
| Video compression formats | H.264, H.265 |
| Supported video modes | 720p, 1080p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Detection distance | 10 m |
| Motion sensor | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 3.5 W |
| DC output voltage | 5 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 106.1 mm |
| Diameter | 7.74 cm |
| Weight | 238 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | DC |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Manual | Yes |
