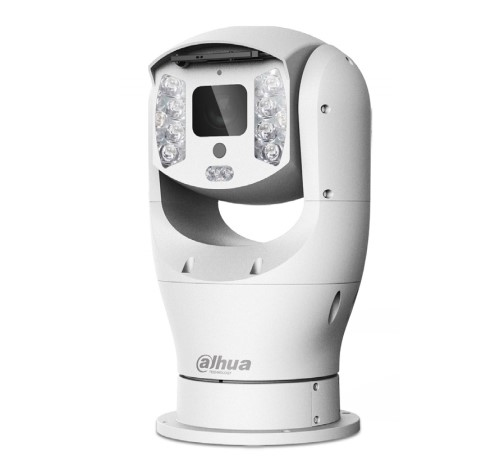

Dahua Technology Consumer PTZ19245U-IRB-N Box IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model PTZ19245U-IRB-NPart no. DH-PTZ19245U-IRB-NEAN 6939554938887

87 specifications

ConnectivityWired
TypeIP security camera
Weight9.8 kg
ColourWhite
Form factorBox
Minimum illumination0.005 lx

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 9.8 kg
Colour: White
Form factor: Box
Minimum illumination: 0.005 lx

Brand: Dahua Technology
Category: Security Camera
Model: PTZ19245U-IRB-N
Part number: DH-PTZ19245U-IRB-N
EAN / UPC: 6939554938887
Also known as: Dahua Technology Consumer PTZ19245U-IRB-N Box IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

87 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocols	Pelco-P/D, DH-SD
Auto-tracking	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 NEMA 4X: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Specification	Value
Form factor	Box
Mounting type	Ceiling/wall
Product colour	White
Housing material	Metal
International Protection (IP) code	IP68
Fog proof	Yes

Camera

Specification	Value
Minimum illumination	0.005 lx
Lens viewing angle, horizontal	70.3°
Tilt angle range	0 - 360°
Tilt preset speed	60 °/sec
Pan range	0 - 360°
Pan speed	120 °/sec
White balance	ATW, Auto, Indoor, Manual, Outdoor
Camera shutter speed	1/1 ~ 1/30000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Number of effective pixels (H x V)	1920 x 1080 pixels

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	45x
Digital zoom	16x
Focal length range	3.95 - 177.7 mm
Maximum aperture number	4.95
Minimum aperture number	1.6
Closest focusing distance	1 m

Night vision

Specification	Value
Night vision	Yes
Night vision distance	350 m
LED type	IR
Number of illumination LEDs	8

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video formats supported	H.264, H.264+, H.265, H.265+
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	352 x 240, 352 x 288, 704 x 480, 720 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Image stabilizer	Yes
3D NR (Noise Reduction)	Yes
Gain control type	Auto/Manual
Back Light Compensation (BLC)	Yes
Bit rate	448K ~ 8192Kbps
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)	Yes
Flip & mirror	Yes
Highlight Compensation (HLC)	Yes
Privacy masking	Yes
Region of Interest (ROI) encoding	Yes

Audio

Specification	Value
Audio input channels	1.0 channels
Audio formats supported	AAC, PCM
Signal-to-Noise Ratio (SNR)	56 dB
Voice codecs	G.711Mu, G.711a, G.722.1, G.726, G.729

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Supported network protocols	IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users	20 user(s)
Streaming method	Multicast, Unicast

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	BNC

Security

Specification	Value
Auto restore after power failure	Yes
Intelligent Video Surveillance (IVS) system features	Abandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Web browser	Yes

Power

Specification	Value
Power source type	AC, PoE
AC input voltage	24 V
Power consumption (typical)	35 W
Power consumption (max)	60 W
Power over Ethernet (PoE)	No

Weight & dimensions

Specification	Value
Width	234 mm
Depth	205 mm
Height	405.5 mm
Weight	9.8 kg

Packaging data

Specification	Value
Package weight	15.5 kg

Packaging content

Specification	Value
Number of cameras	1
