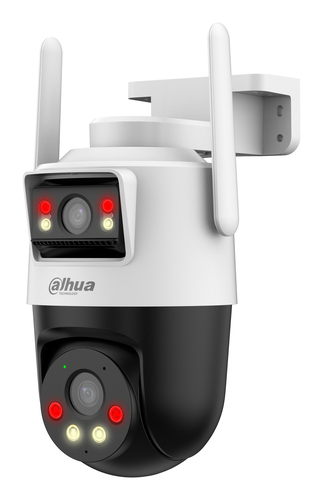

3+3MP Outdoor Dual-Lens Pan & Tilt
4G Camera
Model P3D-3F-PV-4G
87 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight610 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 610 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- P3D-3F-PV-4G
- Part number
- P3D-3F-PV-4G
- Also known as
- Dahua Technology 3+3MP Outdoor Dual-Lens Pan & Tilt 4G Camera
Specifications
87 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in light | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
| Protection features | Weather resistant, Rain proof, Wind resistant |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Tilt control type | Manual |
| Angle of rotation | 180° |
| Lens viewing angle, horizontal | 73.8° |
| Lens viewing angle, vertical | 43.4° |
| Lens viewing angle, diagonal | 86.5° |
| Lens viewing angle, diagonal (second camera) | 86.5° |
| Lens viewing angle, horizontal (second camera) | 73.8° |
| Lens viewing angle, vertical (second camera) | 43.4° |
| Second camera tilt angle range | 90° |
| Tilt angle range | -10 - 15° |
| Pan range | 0 - 290° |
| Second camera pan range | 350° |
| Second camera tilt control type | Electric |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Maximum aperture number | 1.6 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 6 MP |
| Megapixels per lens | 3 MP |
| Video compression formats | H.265+, H.265, H.264+, H.264B, H.264M, H.264H |
| Supported graphics resolutions | 2304 x 1296 |
| Supported video modes | 1296p |
| Video streaming | Yes |
| Bit rate | H264: 80 kbps–2,048 kbps / H265: 32kbps–1,536 kbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Voice codecs | G.711a, PCM, G.711Mu, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile network connection | Yes |
| SIM card slot | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE-FDD |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Built-in siren | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Remotely operated | Yes |
| Management software | DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
| DC output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159.4 mm |
| Depth | 124.9 mm |
| Height | 213.9 mm |
| Weight | 610 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Screws included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
