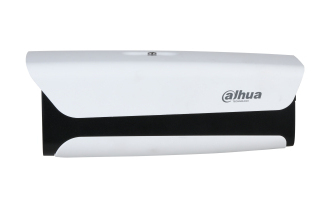

ITC439-PW1H-Z security camera Bullet IP security camera Indoor & outdoor
2688 x 1520 pixels Wall
Model ITC439-PW1H-Z
56 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.7 kg
- ColourBlack, White
- Form factorBullet
- Minimum illumination0.002 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.7 kg
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0.002 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- ITC439-PW1H-Z
- Part number
- ITC439-PW1H-Z
- Also known as
- Dahua Technology ITC439-PW1H-Z security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall
Specifications
56 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Alarm input/output | Yes |
| Light exposure modes | Auto, Manual |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.002 lx |
| Lens viewing angle, horizontal | 114.6 - 48.3° |
| Lens viewing angle, vertical | 59 - 27.1° |
| Lens viewing angle, diagonal | 141.6 - 55.5° |
| White balance | Auto, Manual, Natural, Outdoor, Regional custom, Street lamp |
| Camera shutter speed | 1/25–1/10000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Lens diameter | 4.38 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Video compression formats | H.264H, H.264M, H.265, M-JPEG |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| RS-485 ports | 2 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Vehicle detection |
| Security algorithms | HTTPS |
Power
| Specification | Value |
|---|---|
| Power source type | PoE+, AC, DC |
| AC input voltage | 24 V |
| Power consumption | 20 mA |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124.3 mm |
| Height | 107.7 mm |
| Length | 296.5 mm |
| Weight | 1.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Mounting brackets included | Yes |
