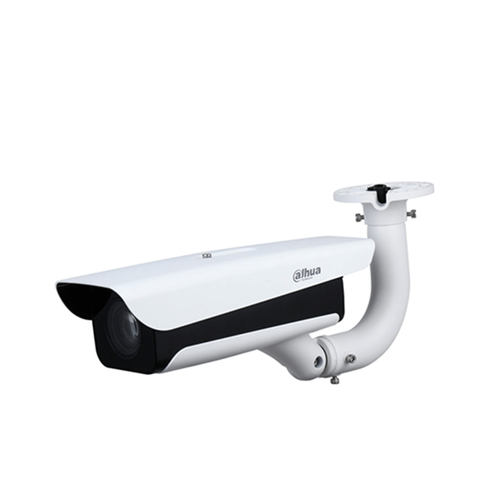

Dahua Technology ITC437-PW6M-IZ-GN Bullet IP security camera Indoor & outdoor
Dahua Technology

ITC437-PW6M-IZ-GN Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Wall

Model ITC437-PW6M-IZ-GNPart no. DHI-ITC437-PW6M-IZ-GNEAN 6923172550873

69 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.9 kg
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.002 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.9 kg
Colour
White
Form factor
Bullet
Minimum illumination
0.002 lx
Brand
Dahua Technology
Model
ITC437-PW6M-IZ-GN
Part number
DHI-ITC437-PW6M-IZ-GN
EAN / UPC
6923172550873
Also known as
Dahua Technology ITC437-PW6M-IZ-GN Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall

Specifications

69 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
Dynamic range96 dB
CertificationCE, FCC, RoHS

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
WeatherproofYes

Camera

Minimum illumination0.002 lx
Lens viewing angle, horizontal114.6 - 48.3°
Lens viewing angle, vertical59.0 - 27.1°
Lens viewing angle, diagonal141.6 - 55.5°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/50 - 1/10000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1

Night vision

Night visionNo
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264B, H.264H, H.264M, H.265, M-JPEG
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Bit rateH.264B: 32 Kbps–32768 Kbps H.264M: 32 Kbps–32768 Kbps H.264H: 32 Kbps–32768 Kbps H.265: 32 Kbps–32768 Kbps MJPEG: 512 Kbps–65536 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-232 ports1
RS-485 ports2

Security

Alarm input channels3
Alarm output channels3
Intelligent Video Surveillance (IVS) system featuresVehicle detection

Power

Power source typeAC, DC, PoE
AC input voltage24 V
Power consumption (typical)20 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 65 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width124.7 mm
Depth515.2 mm
Height183.2 mm
Weight1.9 kg

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)
Sustainability complianceYes

Packaging data

Package weight3.8 kg
Package typeBox

Packaging content

Number of cameras1
ManualYes
