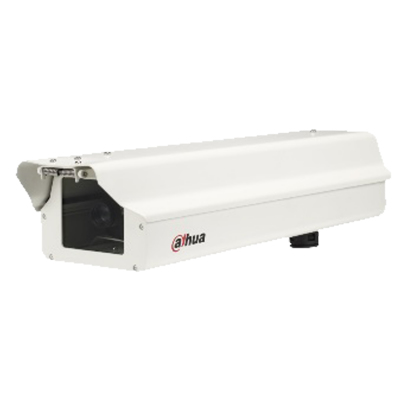

ITC235-TU1A security camera Box IP security camera Outdoor
1920 x 1200 pixels Wall
Model ITC235-TU1A
45 specifications
- ConnectivityWired
- TypeIP security camera
- ColourWhite
- Form factorBox
- Camera shutter typeElectronic
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- White
- Form factor
- Box
- Camera shutter type
- Electronic
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- ITC235-TU1A
- Part number
- ITC235-TU1A
- Also known as
- Dahua Technology ITC235-TU1A security camera Box IP security camera Outdoor 1920 x 1200 pixels Wall
Specifications
45 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.9 mm (1 / 1.9") |
| Effective sensor resolution | 2304000 pixels |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Total megapixels | 2.3 MP |
| Video compression formats | H.264, MPEG |
| Frame rate | 25 fps |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Composite video out | 1 |
| USB port | Yes |
| Terminal block port | Yes |
Security
| Specification | Value |
|---|---|
| Digital watermark | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 90 - 285 V |
| Power consumption (typical) | 25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174.2 mm |
| Depth | 540 mm |
| Height | 143 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
