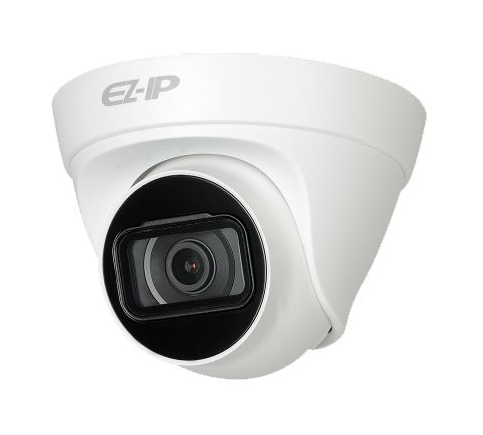

Ez-Ip IPCT1B4036 security camera Dome IP security camera Indoor
2688 x 1520 pixels Ceiling
Model IPCT1B4036
35 specifications
- ConnectivityWired
- TypeIP security camera
- Weight248 g
- ColourWhite
- Form factorDome
- Field of view (FOV) angle95°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 248 g
- Colour
- White
- Form factor
- Dome
- Field of view (FOV) angle
- 95°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPCT1B4036
- Part number
- IPCT1B4036
- Also known as
- Dahua Technology Ez-Ip IPCT1B4036 security camera Dome IP security camera Indoor 2688 x 1520 pixels Ceiling
Specifications
35 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 95° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 4.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 248 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
