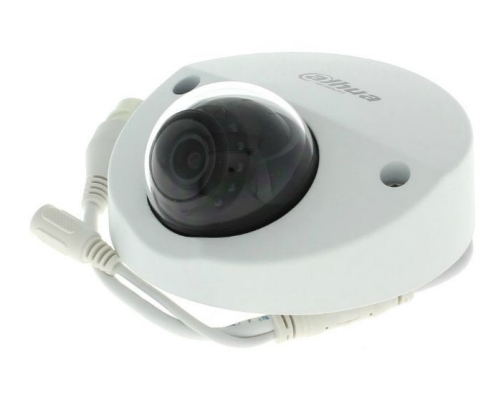

Consumer IPCHDBW4231F28 security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model IPCHDBW4231F28
56 specifications
- ConnectivityWired
- TypeIP security camera
- Weight400 g
- ColourBlack, White
- Form factorDome
- Lens viewing angle, horizontal110°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 400 g
- Colour
- Black, White
- Form factor
- Dome
- Lens viewing angle, horizontal
- 110°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPCHDBW4231F28
- Part number
- IPCHDBW4231F28
- Also known as
- Dahua Technology Consumer IPCHDBW4231F28 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
56 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 110° |
| Lens viewing angle, vertical | 58° |
Image sensor
| Specification | Value |
|---|---|
| Number of sensors | 1 |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Lens diameter | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | ONVIF, PSIA, CGI |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 4.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 50.3 mm |
| Diameter | 10.6 cm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
