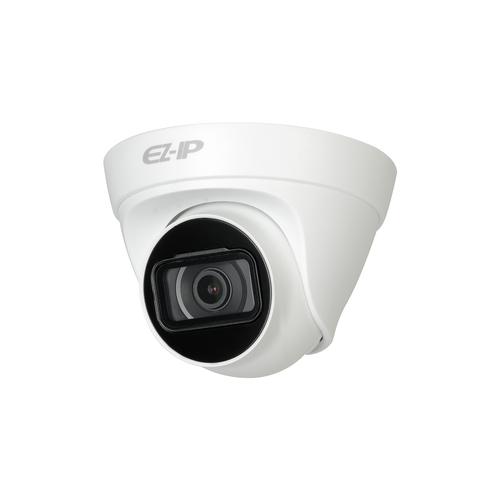

Dahua Technology Ez-Ip IPC-T1B20 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Ez-Ip IPC-T1B20 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model IPC-T1B20EAN 6939554941474

95 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-T1B20
Part numbers
IPC-T1B20, IPC-T1B20P-0280B
EAN / UPC
6939554941474
Also known as
Dahua Technology Ez-Ip IPC-T1B20 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

95 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE, FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.09 lx
Angle of rotation360°
Lens viewing angle, horizontal115°
Lens viewing angle, vertical60°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Digital zoom16x
Detect distance43.5 m
Observe distance17.4 m
Recognize distance8.7 m
Fixed focusYes
Identify distance4.3 m
Maximum aperture number2
Minimum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265, MPEG
Video compression formatsH.264+, H.265+
Supported graphics resolutions342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes480p, 540p, 576p, 720p, 960p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH265:12K~6400K H.264:32K ~8192K
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4; NTP;Multicas; ICMP; IGMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)4.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight360 g
Package typeBox

Packaging content

Number of cameras1
Cables includedLAN (RJ-45)
ManualYes
