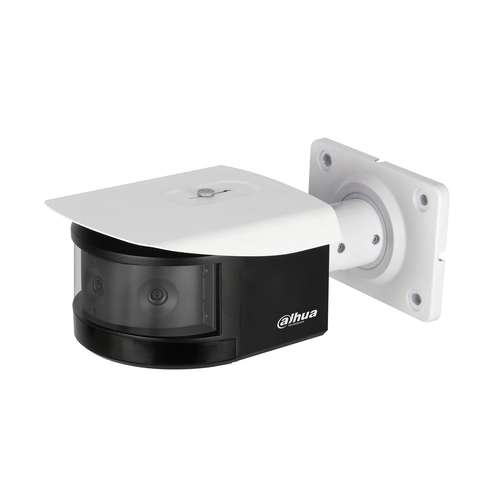

Dahua Technology Panoramic IPC-PFW8601-A180 Bullet IP security camera Indoor & outdoor
Dahua Technology

Panoramic IPC-PFW8601-A180 Bullet IP security camera Indoor & outdoor

4096 x 832 pixels Wall

Model IPC-PFW8601-A180Part no. DH-IPC-PFW8601-A180

85 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.6 kg
  • ColourWhite
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
2.6 kg
Colour
White
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
IPC-PFW8601-A180
Part number
DH-IPC-PFW8601-A180
Also known as
Dahua Technology Panoramic IPC-PFW8601-A180 Bullet IP security camera Indoor & outdoor 4096 x 832 pixels Wall

Specifications

85 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.007 lx
Angle of rotation360°
Tilt angle range0 - 90°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)4096 x 832 pixels

Lens system

Number of lenses3
Digital zoom16x
Detect distance52 m
Observe distance21 m
Recognize distance10 m
Focal length range3.6 - 3.6 mm
Fixed focusYes
Identify distance5 m
Maximum aperture number1.8

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution4096 x 832 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Frame rate30 fps
Video intelligence analyticYes
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265: 4Kbps~ 10Mbps H.264: 8Kbps~ 16Mbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.711 A-law, G.726
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire

Management features

Web-based managementYes
Web browserYes

Power

Power source typeAC, PoE
AC input voltage24 V
Power consumption (max)23 W
Power consumption (Power over Ethernet (PoE))23 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width298.3 mm
Depth172.5 mm
Height120.5 mm
Weight2.6 kg

Packaging data

Package weight3.41 kg
Package typeBox

Packaging content

Number of cameras1
ManualYes
