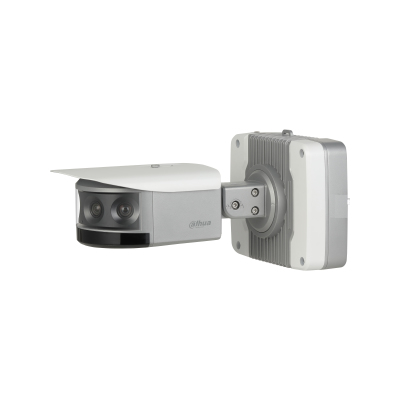

Dahua Technology Panoramic IPC-PF83230-A180 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Panoramic IPC-PF83230-A180 security camera Bullet IP security camera Indoor & outdoor

8640 x 3840 pixels Wall

Model IPC-PF83230-A180EAN 6939554917035

89 specifications
  • Memory3072 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight6.9 kg
  • ColourGrey, White
  • Form factorBullet
See all specifications

Overview

Memory
3072 MB
Connectivity
Wired
Type
IP security camera
Weight
6.9 kg
Colour
Grey, White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-PF83230-A180
Part number
IPC-PF83230-A180
EAN / UPC
6939554917035
Also known as
Dahua Technology Panoramic IPC-PF83230-A180 security camera Bullet IP security camera Indoor & outdoor 8640 x 3840 pixels Wall

Specifications

89 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC 15 B

Design

Form factorBullet
Mounting typeWall
Product colourGrey, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.009 lx
Angle of rotation355°
Lens viewing angle, horizontal180°
Lens viewing angle, vertical80°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Detect distance90 m
Observe distance36 m
Recognize distance18 m
Fixed focusYes
Identify distance9 m
Maximum aperture number2.4
Fixed focal length4.5 mm

Video

Maximum resolution8640 x 3840 pixels
Total megapixels8 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions1032 x 452, 1284 x 560, 1920 x 832, 2880 x 1264, 3840 x 1680, 8640 x 3940
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels2.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS
Cabling technology10/100/1000Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory3072 MB
ROM capacity384 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Management features

Web-based managementYes

Power

Power source typeDC
Power consumption (max)35 W
DC output voltage36

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width411 mm
Depth251.7 mm
Height114.4 mm
Weight6.9 kg

Packaging data

Package weight10 kg

Packaging content

Number of cameras1
