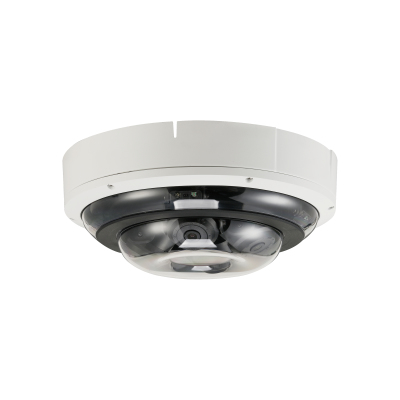

Dahua Technology Panoramic IPC-PDBW5831-B360-E4 Dome IP security camera Indoor
Dahua Technology

Panoramic IPC-PDBW5831-B360-E4 Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model IPC-PDBW5831-B360-E4Part no. DH-IPC-PDBW5831-B360-E4

86 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.7 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
2.7 kg
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
IPC-PDBW5831-B360-E4
Part number
DH-IPC-PDBW5831-B360-E4
Also known as
Dahua Technology Panoramic IPC-PDBW5831-B360-E4 Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

86 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal105°
Lens viewing angle, vertical54°
Tilt angle range0 - 80°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speed1/3 - 100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Focal length range2.7 - 12 mm
FocusMotorized
Maximum aperture number1.8
Closest focusing distance0.2 m
Detect distance (tele)99 m
Detect distance (wide)45 m
Identify distance (tele)10 m
Identify distance (wide)4.5 m
Observe distance (tele)40 m
Observe distance (wide)18 m
Recognize distance (tele)20 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264+, H.265+
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Back Light Compensation (BLC)Yes
Bit rateH.264: 32~8192Kbps, H.265: 12~6144Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio formats supportedAAC, G.711 A-law, G.726
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsHTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP ;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Number of users20 user(s)
User access levelUser
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
DC-in jackYes

Security

Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeAC, PoE
AC input voltage24 V
Power consumption (Power over Ethernet (PoE))23.8 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Height111.3 mm
Diameter28.6 cm
Weight2.7 kg

Packaging data

Package weight36 kg
Package typeBox

Packaging content

Number of cameras1
