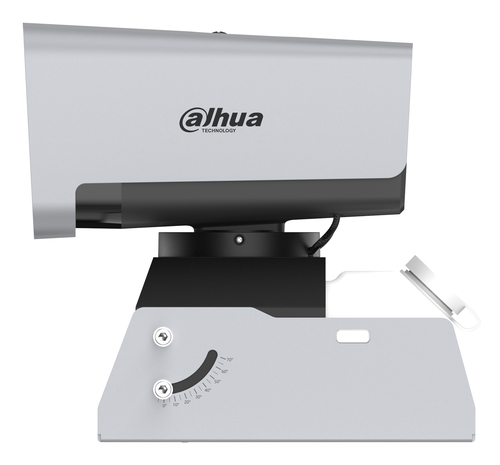

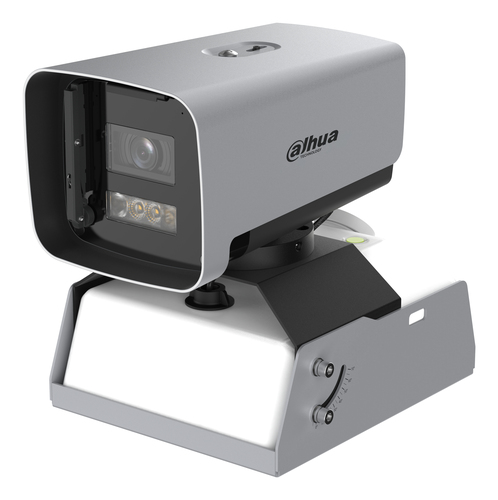

Dahua Technology WizMind 4MP Self-Cleaning Bullet Network Camera
Dahua Technology

WizMind 4MP Self-Cleaning Bullet Network Camera

Model IPC-HFW8449J-Z-SC

116 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3.91 kg
  • ColourSilver
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
3.91 kg
Colour
Silver
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW8449J-Z-SC
Part number
IPC-HFW8449J-Z-SC
Also known as
Dahua Technology WizMind 4MP Self-Cleaning Bullet Network Camera

Specifications

116 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range140 dB

Design

Form factorBullet
Mounting typeWall
Product colourSilver
Housing materialMetal, Plastic
Protection featuresWater resistant, Corrosion resistant
International Protection (IP) codeIP67
WeatherproofYes
Fog proofYes

Camera

Minimum illumination0 lx
Angle of rotation270°
Lens viewing angle, horizontal92.6 - 48°
Lens viewing angle, vertical50 - 27°
Lens viewing angle, diagonal109.5 - 56°
Tilt angle range-70 - 5°
Pan range-5 - 5°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Focal length range2.7 - 12 mm
Maximum aperture number1.2
Closest focusing distance0.16 m
Detect distance (tele)128.7 m
Detect distance (wide)70.9 m
Identify distance (tele)12.9 m
Identify distance (wide)7.1 m
Observe distance (tele)51.5 m
Observe distance (wide)28.4 m
Recognize distance (tele)25.7 m
Recognize distance (wide)14.2 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.265, H.264, H.264B, M-JPEG
Supported graphics resolutions2688 x 1520, 2560 x 1440, 2048 x 1536 (QXGA), 2304 x 1296, 1920 x 1920, 1280 x 960, 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240
Supported video modes1520p, 1440p, 1536p, 1296p, 1080p, 960p, 720p, 576p, 480p, 240p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Number of microphones2
Voice codecsPCM, G.711a, G.711Mu, G.726, G.723
Bit rate range3 - 16384 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity4000 MB
RAM capacity1000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels2
Alarm output channels2
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Missing object, Intrusion, Tripwire, Face detection
MirrorYes
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmartPSS Lite; DSS; DMSS; DoLynk Care

Power

Power source typeDC, PoE
Power consumption (typical)3.4 W
Power consumption (max)16.3 W
Power consumption (Power over Ethernet (PoE))4.9 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width217.1 mm
Height254.8 mm
Length274.9 mm
Weight3.91 kg

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC)

Packaging data

Package weight5.03 kg

Packaging content

Number of cameras1
Wiper includedYes

Technical details

Audio inputRCA
IrisYes
Lens typeVarifocal
Number of video streams3

Other features

Audio outputRCA
Browser supportedChrome, IE, Firefox, Safari, Edge
Data transfer rate100 Mbit/s
