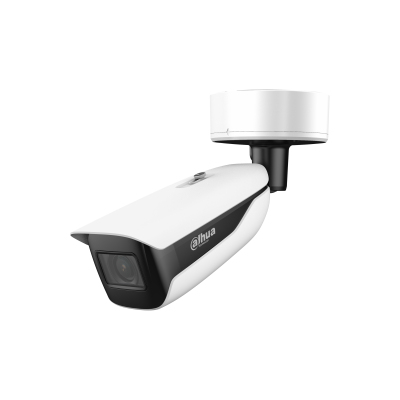

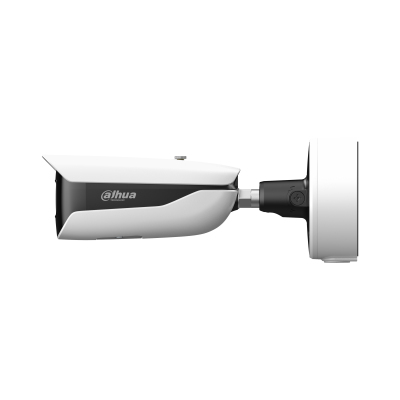

Dahua Technology WizMind IPC-HFW7442H-Z-X security camera Bullet IP security camera Outdoor
Dahua Technology

WizMind IPC-HFW7442H-Z-X security camera Bullet IP security camera Outdoor

2688 x 1520 pixels Ceiling/Wall/Pole

Model IPC-HFW7442H-Z-X

84 specifications
  • Memory8192 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.65 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
8192 MB
Connectivity
Wired
Type
IP security camera
Weight
1.65 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW7442H-Z-X
Part number
IPC-HFW7442H-Z-X
Also known as
Dahua Technology WizMind IPC-HFW7442H-Z-X security camera Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

84 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range150 dB

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal107 - 48°
Lens viewing angle, vertical55 - 27°
Lens viewing angle, diagonal130 - 56°
Tilt angle range0 - 90°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Focal length range2.7 - 12 mm
Minimum aperture number1.2
Closest focusing distance1.8 m
Detect distance (tele)128.7 m
Detect distance (wide)60.4 m
Identify distance (tele)12.9 m
Identify distance (wide)6 m
Observe distance (tele)51.5 m
Observe distance (wide)24.2 m
Recognize distance (tele)25.7 m
Recognize distance (wide)12.1 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate60 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity4096 MB
RAM capacity8192 MB

Security

Alarm input channels3
Alarm output channels2
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeAC, DC, PoE
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Width134.2 mm
Height135.1 mm
Length345.6 mm
Weight1.65 kg

Packaging data

Package weight2.73 kg

Packaging content

Number of cameras1
