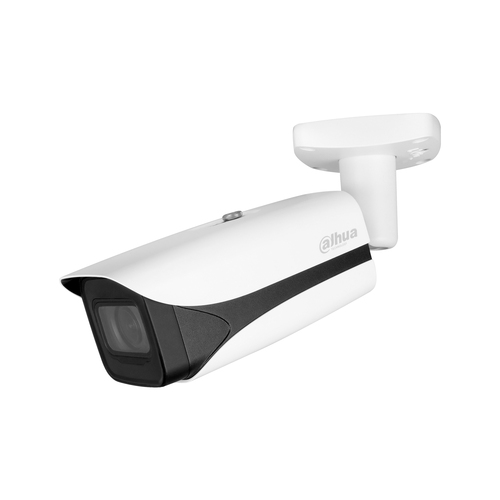

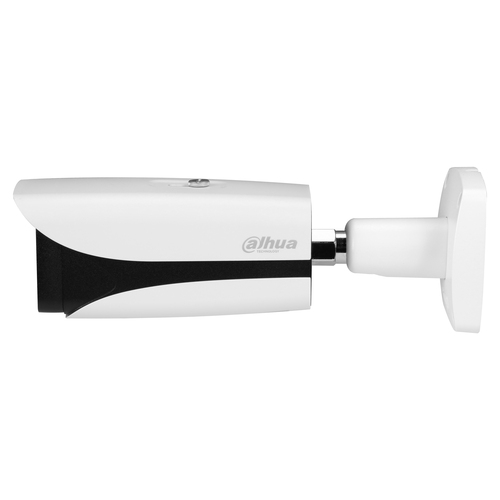

Dahua Technology IPC-HFW5842E-Z4E Bullet IP security camera Outdoor
Dahua Technology

IPC-HFW5842E-Z4E Bullet IP security camera Outdoor

3840 x 2160 pixels Wall

Model IPC-HFW5842E-Z4EPart no. DH-IPC-HFW5842E-Z4EEAN 6923172587237

109 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.13 kg
  • ColourBlack, White
  • Form factorBullet
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.13 kg
Colour
Black, White
Form factor
Bullet
Minimum illumination
0 lx
Brand
Dahua Technology
Model
IPC-HFW5842E-Z4E
Part number
DH-IPC-HFW5842E-Z4E
EAN / UPC
6923172587237
Also known as
Dahua Technology IPC-HFW5842E-Z4E Bullet IP security camera Outdoor 3840 x 2160 pixels Wall

Specifications

109 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorBullet
Mounting typeWall
Product colourBlack, White
Housing materialMetal, Plastic
Protection featuresWater resistant
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal42 - 15°
Lens viewing angle, vertical23 - 9°
Lens viewing angle, diagonal48 - 17°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range8 - 32 mm
Auto focusYes
FocusMotorized
Maximum aperture number1.6
Closest focusing distance1.5 m
Detect distance (tele)572.8 m
Detect distance (wide)213.6 m
Identify distance (tele)57.3 m
Identify distance (wide)21.4 m
Observe distance (tele)229.1 m
Observe distance (wide)85.4 m
Recognize distance (tele)114.6 m
Recognize distance (wide)42.7 m

Night vision

Night visionYes
Night vision distance120 m
LED typeIR/White

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate32 Kbps - 16 Mbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Number of users20 user(s)
User access levelAdministrator, Operator, User
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
Flash memory2048 MB
ROM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, People counting
MirrorYes
Network access storage (NAS)Yes
Privacy protectionYes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmartPSS Lite; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (max)10.2 W
Power consumption (Power over Ethernet (PoE))12.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Width95 mm
Height95 mm
Length273.2 mm
Weight1.13 kg

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC), UL, cUL
Sustainability complianceYes

Packaging data

Package weight1.68 kg

Packaging content

Number of cameras1

Technical details

Audio inputRCA
IrisYes

Other features

Audio outputRCA
