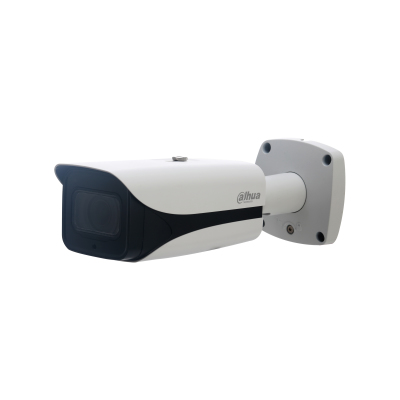

Pro IPC-HFW5831E-Z5E security camera Bullet IP security camera Outdoor
3840 x 2160 pixels Ceiling/wall
Model IPC-HFW5831E-Z5E
97 specifications
- Memory512 MB
- ConnectivityWired
- TypeIP security camera
- Weight1.11 kg
- ColourWhite
- Form factorBullet
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.11 kg
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HFW5831E-Z5E
- Part number
- IPC-HFW5831E-Z5E
- Also known as
- Dahua Technology Pro IPC-HFW5831E-Z5E security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall
Specifications
97 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC 15 B |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 38° |
| Lens viewing angle, vertical | 22° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Custom modes, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 16x |
| Focal length range | 7 - 35 mm |
| Focus | Motorized |
| Maximum aperture number | 1.4 |
| Closest focusing distance | 0.6 m |
| Detect distance (tele) | 765 m |
| Detect distance (wide) | 234 m |
| Identify distance (tele) | 76 m |
| Identify distance (wide) | 23 m |
| Observe distance (tele) | 306 m |
| Observe distance (wide) | 94 m |
| Recognize distance (tele) | 153 m |
| Recognize distance (wide) | 47 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 100 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 24K - 10240Kbps, 14K - 9984Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Voice codecs | AAC, G.711Mu, G.711a, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
| Internal memory | 512 MB |
| ROM capacity | 32 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 12.95 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 95 mm |
| Length | 273.2 mm |
| Weight | 1.11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.51 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
