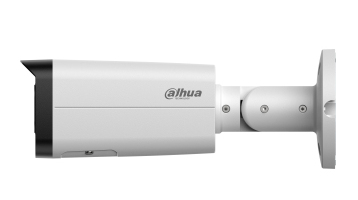

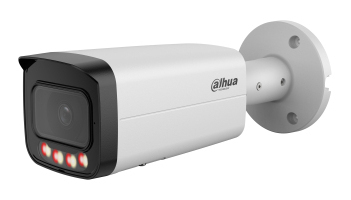

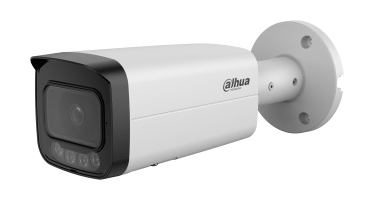

Dahua Technology IPC-HFW5559T-ASE-IL Bullet IP security camera Outdoor
Dahua Technology

IPC-HFW5559T-ASE-IL Bullet IP security camera Outdoor

2960 x 1668 pixels Ceiling/wall

Model IPC-HFW5559T-ASE-ILPart no. IPC-HFW5559T-ASE-IL-0280BEAN 6937552411357

102 specifications
  • Memory2000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight835 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
2000 MB
Connectivity
Wired
Type
IP security camera
Weight
835 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW5559T-ASE-IL
Part numbers
IPC-HFW5559T-ASE-IL-0280B, IPC-HFW5559T-ASE-IL-0360B-BLACK, IPC-HFW5559T-ASE-IL-0280B-BLACK, IPC-HFW5559T-ASE-IL-0360B
EAN / UPC
6937552411357, 6937552411340
Also known as
Dahua Technology IPC-HFW5559T-ASE-IL Bullet IP security camera Outdoor 2960 x 1668 pixels Ceiling/wall

Specifications

102 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.0009 lx
Angle of rotation360°
Lens viewing angle, horizontal108.4°
Lens viewing angle, vertical60°
Lens viewing angle, diagonal127.1°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100,000
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Detect distance61.6 m
Observe distance24.6 m
Recognize distance12.3 m
Focal length range2.8 mm
Fixed focusYes
Identify distance6.2 m
Maximum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
B/W night vision distance80 m
Colour night vision distance60 m
Number of illumination LEDs4

Video

Maximum resolution2960 x 1668 pixels
Total megapixels5 MP
Video compression formatsH.265, H.264, H.264H, H.264B
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedDSS
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Number of microphones1
Voice codecsG.711Mu, G.711a, PCM, G.726, G.723

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface type10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity4000 MB
RAM capacity2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire, People counting, Face detection, Heat map
MirrorYes

Management features

Web browserYes
Cloud-managedNo
Management softwareDSS; DMSS; DoLynk Care

Power

Power source typePoE, DC
Power consumption (max)13.3 W
Power consumption (Power over Ethernet (PoE))15.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width90.7 mm
Depth238 mm
Height90.7 mm
Weight835 g

Packaging data

Package weight1.09 kg
Package typeBox

Packaging content

Number of cameras1

Technical details

Audio input1 channel (RCA)
Lens mount interfaceM12

Other features

Audio output1 channel (RCA)
