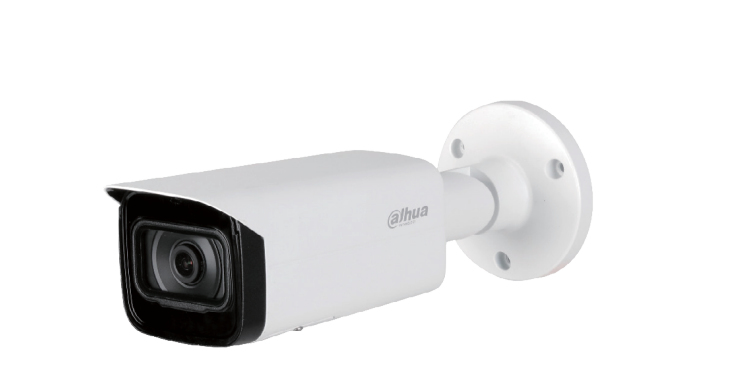

WizMind IPC-HFW5541TN-ASE Bullet IP security camera Indoor & outdoor
2592 x 1944 pixels Ceiling/Wall/Desk
Model IPC-HFW5541TN-ASEPart no. DH-IPC-HFW5541TN-ASE
54 specifications
- Memory512 MB
- ConnectivityWired
- TypeIP security camera
- Weight815 g
- ColourWhite
- Form factorBullet
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 815 g
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HFW5541TN-ASE
- Part number
- DH-IPC-HFW5541TN-ASE
- Also known as
- Dahua Technology WizMind IPC-HFW5541TN-ASE Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/Wall/Desk
Specifications
54 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| People counting function | Yes |
| Maximum operating distance | 240 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Panoramic camera
| Specification | Value |
|---|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 3 |
| Fixed focus | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 80 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video intelligence analytic | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 56 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Number of users | 20 user(s) |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Active tampering alarm | Yes |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244.1 mm |
| Depth | 79 mm |
| Height | 75.9 mm |
| Weight | 815 g |
Features
| Specification | Value |
|---|---|
| Basic event | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
