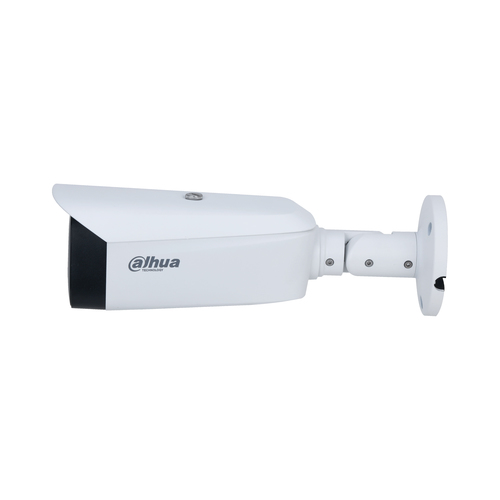

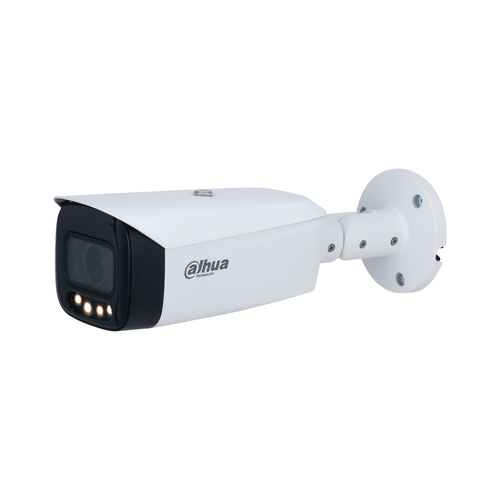

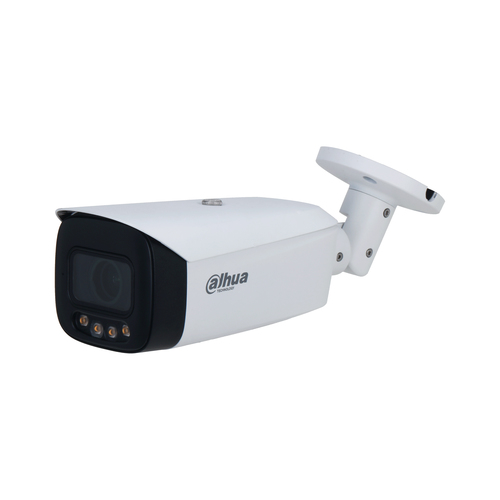

Dahua Technology IPC -HFW5449T1-ZE-LED-2712 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

IPC -HFW5449T1-ZE-LED-2712 security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HFW5449T1-ZE-LED-2712

93 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW5449T1-ZE-LED-2712
Part number
IPC-HFW5449T1-ZE-LED-2712
Also known as
Dahua Technology IPC -HFW5449T1-ZE-LED-2712 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

93 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range140 dB

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
LED indicatorsYes
Housing materialMetal
International Protection (IP) codeIP67
WeatherproofYes
Fog proofYes

Camera

Camera tilt controlNo
Minimum illumination0.0005 lx
Angle of rotation360°
Lens viewing angle, horizontal115 - 48°
Lens viewing angle, vertical59 - 27°
Lens viewing angle, diagonal142 - 55°
Tilt angle range-20 - 90°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
Maximum aperture number1
Detect distance (tele)128.6 m
Detect distance (wide)60.4 m
Identify distance (tele)12.8 m
Identify distance (wide)6 m
Observe distance (tele)51.4 m
Observe distance (wide)21.1 m
Recognize distance (tele)25.7 m
Recognize distance (wide)12 m

Night vision

Night visionYes
Night vision distance70 m

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Digital watermarkYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Heat map, Missing object, People counting, Tripwire
MirrorYes

Management features

Web-based managementYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (max)7.6 W
Power consumption (Power over Ethernet (PoE))9.3 W
DC output current12 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width94.4 mm
Height84.7 mm
Length288.4 mm
Weight1 kg

Packaging data

Package weight1.23 kg

Packaging content

Number of cameras1
