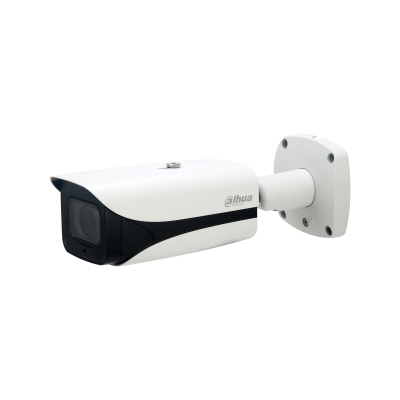

Pro IPC-HFW5442E-ZHE security camera Bullet IP security camera Outdoor
2688 x 1520 pixels Ceiling/wall
Model IPC-HFW5442E-ZHE
94 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight1.11 kg
- ColourWhite
- Form factorBullet
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.11 kg
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HFW5442E-ZHE
- Part number
- IPC-HFW5442E-ZHE
- Also known as
- Dahua Technology Pro IPC-HFW5442E-ZHE security camera Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall
Specifications
94 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Alarm input/output | Yes |
| Certification | CE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.003 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 114° |
| Lens viewing angle, vertical | 62° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 12 mm |
| Maximum aperture number | 1.8 |
| Closest focusing distance | 1.2 m |
| Detect distance (tele) | 131 m |
| Detect distance (wide) | 58 m |
| Identify distance (tele) | 13 m |
| Identify distance (wide) | 6 m |
| Observe distance (tele) | 52 m |
| Observe distance (wide) | 23 m |
| Recognize distance (tele) | 26 m |
| Recognize distance (wide) | 12 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Voice codecs | G.711Mu, G.711a, G.723, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 1024 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Tripwire |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Behavior analysis | Intrusion detection |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 15.2 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 95 mm |
| Length | 273.2 mm |
| Weight | 1.11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.51 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
