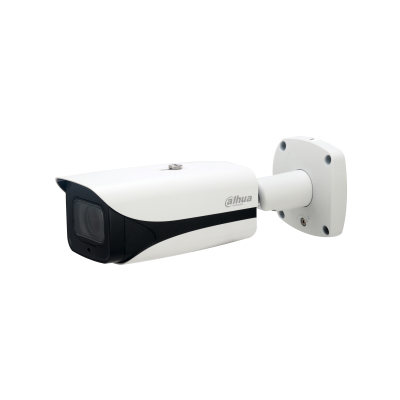

Dahua Technology Pro IPC-HFW5241E-Z5E security camera Bullet IP security camera Outdoor
Dahua Technology

Pro IPC-HFW5241E-Z5E security camera Bullet IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HFW5241E-Z5E

86 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.11 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1.11 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW5241E-Z5E
Part number
IPC-HFW5241E-Z5E
Also known as
Dahua Technology Pro IPC-HFW5241E-Z5E security camera Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

86 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal33°
Lens viewing angle, vertical19°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range7 - 35 mm

Night vision

Night visionYes
Night vision distance120 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresPeople counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection, Line crossing detection

Power

Power source typeDC, PoE
Power consumption (max)10.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width95 mm
Depth95 mm
Length273.2 mm
Weight1.11 kg

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
