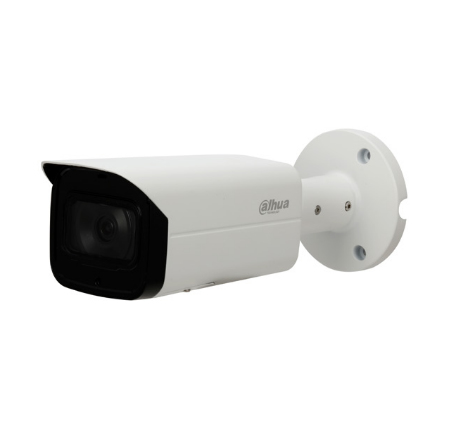

Dahua Technology Lite IPC-HFW4631TP-ASE Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HFW4631TP-ASE Bullet IP security camera Indoor & outdoor

3072 x 2048 pixels Ceiling/wall

Model IPC-HFW4631TP-ASEPart no. IPC-HFW4631TP-ASE-0280B

88 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight815 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
815 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW4631TP-ASE
Part number
IPC-HFW4631TP-ASE-0280B
Also known as
Dahua Technology Lite IPC-HFW4631TP-ASE Bullet IP security camera Indoor & outdoor 3072 x 2048 pixels Ceiling/wall

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Vandal proof, Water resistant
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal98°
Lens viewing angle, vertical67°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes
Number of effective pixels (H x V)3072 x 2048 pixels

Lens system

Number of lenses1
Digital zoom16x
Fixed focusYes
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance80 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions2688 x 1520, 3072 x 2048
Supported video modes1080p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1

Security

Active tampering alarmYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Security algorithms802.1x RADIUS, HTTPS, TLS
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)11 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width79 mm
Depth244.1 mm
Height75.9 mm
Weight815 g

Packaging data

Package weight1.08 kg

Packaging content

Number of cameras1
