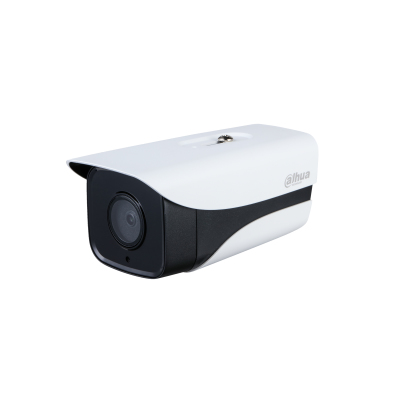

Dahua Technology IPC-HFW4230M-4G-AS-I2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

IPC-HFW4230M-4G-AS-I2 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model IPC-HFW4230M-4G-AS-I2EAN 6939554972201

68 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight640 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.08 lx
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
640 g
Colour
White
Form factor
Bullet
Minimum illumination
0.08 lx
Brand
Dahua Technology
Model
IPC-HFW4230M-4G-AS-I2
Part number
IPC-HFW4230M-4G-AS-I2
EAN / UPC
6939554972201
Also known as
Dahua Technology IPC-HFW4230M-4G-AS-I2 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

68 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Day/night modeYes
Alarm input/outputYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.08 lx
Lens viewing angle, horizontal82°
Lens viewing angle, vertical44°
White balanceAuto, Manual, Natural, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Fixed focusYes
Maximum aperture number2
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance80 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate30 fps
Video streamingYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

MirrorYes

Power

Power source typeDC
Power consumption (typical)9.5 W
DC output voltage5, 12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Width194.1 mm
Depth96.1 mm
Height89.9 mm
Weight640 g

Packaging data

Package weight790 g
Package typeBox

Packaging content

Number of cameras1
