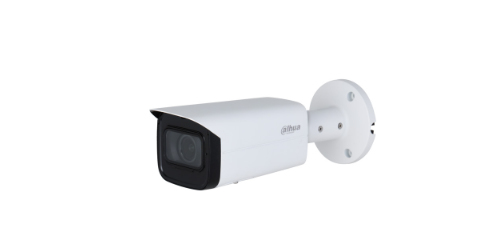

Dahua Technology WizSense IPC-HFW3841TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HFW3841TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/wall

Model IPC-HFW3841TP-ZS-27135-S2EAN 6923172542335

93 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight820 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
820 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3841TP-ZS-27135-S2
Part number
IPC-HFW3841TP-ZS-27135-S2
EAN / UPC
6923172542335
Also known as
Dahua Technology WizSense IPC-HFW3841TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

93 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.007 lx
Angle of rotation360°
Lens viewing angle, horizontal109 - 30°
Lens viewing angle, vertical56 - 17°
Lens viewing angle, diagonal131 - 35°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 -1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Focal length range27 - 13.5 mm
Closest focusing distance0.8 m
Detect distance (tele)289.7 m
Detect distance (wide)88.3 m
Identify distance (tele)29 m
Identify distance (wide)8.8 m
Observe distance (tele)115.7 m
Observe distance (wide)35.3 m
Recognize distance (tele)57.9 m
Recognize distance (wide)17.7 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.711 μ-law, G.723, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNM
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1024 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)9.2 W
Power consumption (Power over Ethernet (PoE))10 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width79 mm
Depth244.1 mm
Height75.9 mm
Diameter9.04 cm
Weight820 g

Packaging data

Package weight1.09 kg

Packaging content

Number of cameras1
