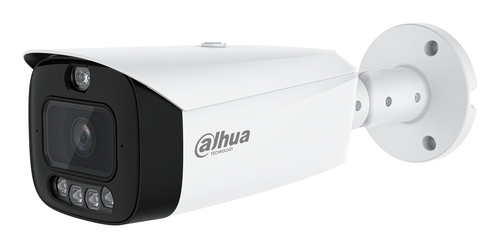

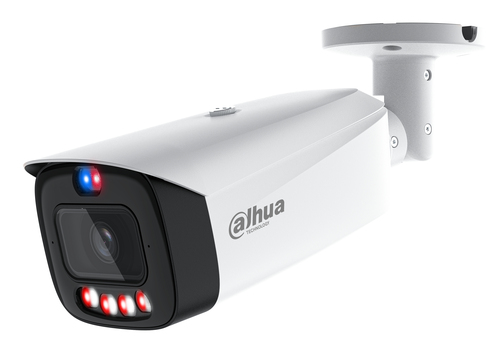

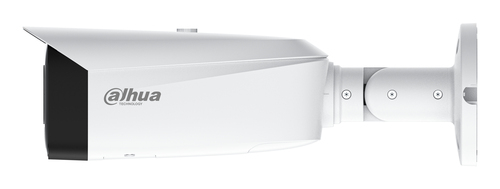

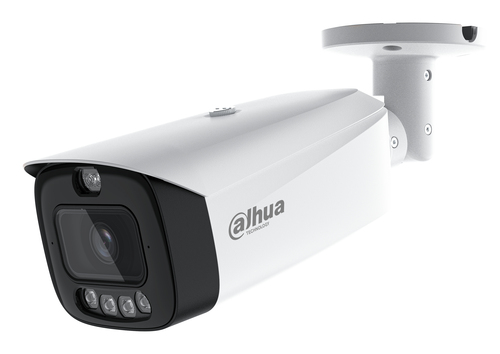

Dahua Technology WizSense 6MP WizColor TiOC PRO Fixed-focal Bullet Network Camera
Dahua Technology

WizSense 6MP WizColor TiOC PRO Fixed-focal Bullet Network Camera

Model IPC-HFW3649T1-AS-PV-PROEAN 6939554914201

118 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3649T1-AS-PV-PRO
Part number
IPC-HFW3649T1-AS-PV-PRO
EAN / UPC
6939554914201
Also known as
Dahua Technology WizSense 6MP WizColor TiOC PRO Fixed-focal Bullet Network Camera

Specifications

118 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
Smart search functionYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Fog proofYes

Camera

Minimum illumination0.0004 lx
Angle of rotation360°
Lens viewing angle, horizontal93°
Lens viewing angle, vertical50°
Lens viewing angle, diagonal111°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance85.6 m
Observe distance34.3 m
Recognize distance17.1 m
Fixed focusYes
Identify distance8.6 m
Maximum aperture number1
Closest focusing distance4.4 m
Fixed focal length3.6 mm
Lens distortion correction (LDC)Yes

Night vision

Night visionYes
Night vision distance60 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution3288 x 1850 pixels
Total megapixels6 MP
Video compression formatsH.264, H.265, H.264H, H.264B, M-JPEG
Supported graphics resolutions3200 x 1800, 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240
Supported video modes1620p, 1520p, 1440p, 1296p, 1080p, 720p, 576p, 480p, 240p
Frame rate30 fps
Video streamingYes
Image rotation angles270°
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps–16384 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR), Adaptive Bit Rate (ABR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Scene self-adaptation (SSA)Yes
Smart IRYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio codecsPCM; G.711a; G.711Mu; G.726; G.723
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity256 MB
RAM capacity1000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire, Human detection, Vehicle detection, Face detection
MirrorYes
Motion detection systemSMD 4.0
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS Lite; DSS; DMSS; DoLynk Care

Power

Power source typeDC, PoE
Power consumption (typical)4.3 W
Power consumption (max)11.8 W
Power consumption (Power over Ethernet (PoE))6.2 W
Power consumption (Power over Ethernet (PoE)) (max)15.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width94.4 mm
Height84.7 mm
Length288.4 mm
Weight1 kg

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging data

Package weight1.3 kg

Packaging content

Number of cameras1

Technical details

Audio input1x RCA
IrisYes
Lens mount interfaceM16
Number of video streams3

Other features

Audio output1x RCA
Browser supportedIE: IE11 Chrome Firefox
