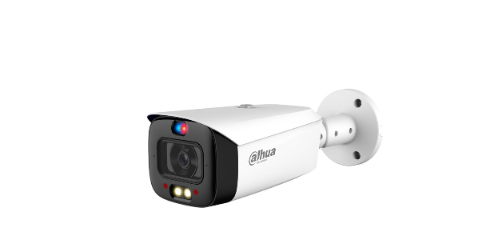

Dahua Technology WizSense IPC-HFW3449T1P-AS-PV-0280B-S3 Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HFW3449T1P-AS-PV-0280B-S3 Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HFW3449T1P-AS-PV-0280B-S3Part no. 3449T1PASPV0280BS3EAN 6923172526496

94 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3449T1P-AS-PV-0280B-S3
Part number
3449T1PASPV0280BS3
EAN / UPC
6923172526496
Also known as
Dahua Technology WizSense IPC-HFW3449T1P-AS-PV-0280B-S3 Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

94 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresWaterproof
International Protection (IP) codeIP67

Camera

Minimum illumination0.003 lx
Angle of rotation360°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal122°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance57.4 m
Observe distance27 m
Recognize distance13.5 m
Identify distance6.7 m
Maximum aperture number1
Closest focusing distance1.2 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1512
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate12 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS;DSS;DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2 W
Power consumption (max)7.5 W
Power consumption (Power over Ethernet (PoE))8.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width94.4 mm
Height84.7 mm
Length288.4 mm
Weight1 kg

Packaging data

Package weight1.23 kg

Packaging content

Number of cameras1
