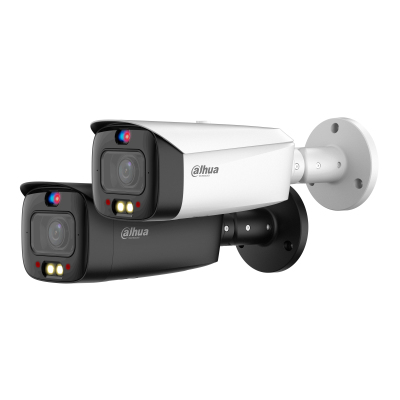

Dahua Technology WizSense IPC-HFW3449T1-ZAS-PV Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HFW3449T1-ZAS-PV Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/Wall/Pole

Model IPC-HFW3449T1-ZAS-PVPart no. DH-IPC-HFW3449T1-ZAS-PVEAN 6923172535443

97 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.05 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1.05 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3449T1-ZAS-PV
Part number
DH-IPC-HFW3449T1-ZAS-PV
EAN / UPC
6923172535443
Also known as
Dahua Technology WizSense IPC-HFW3449T1-ZAS-PV Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

97 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Fog proofYes

Camera

Minimum illumination0.0003 lx
Angle of rotation360°
Lens viewing angle, horizontal33 - 103°
Lens viewing angle, vertical18 - 54°
Lens viewing angle, diagonal38 - 124°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Custom modes, Lamp, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1
Closest focusing distance1.5 m
Detect distance (tele)186.6 m
Detect distance (wide)65.2 m
Identify distance (tele)18.7 m
Identify distance (wide)6.5 m
Observe distance (tele)74.6 m
Observe distance (wide)26.1 m
Recognize distance (tele)37.3 m
Recognize distance (wide)13 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC, PoE
Power consumption (typical)3.3 W
Power consumption (max)8.7 W
Power consumption (Power over Ethernet (PoE))4.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width288.4 mm
Depth94.4 mm
Height84.7 mm
Weight1.05 kg

Packaging data

Package weight1.35 kg

Packaging content

Number of cameras1
