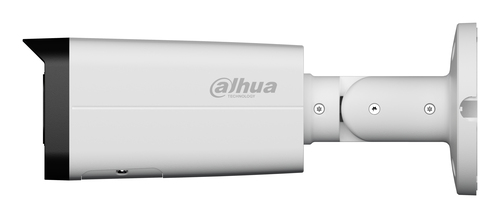

Dahua Technology WizSense 2MP Smart Dual Light Vari-focal Bullet Network Camera
Dahua Technology

WizSense 2MP Smart Dual Light Vari-focal Bullet Network Camera

Model IPC-HFW3249T-ZS-ILEAN 6939554927096

117 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight835 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
835 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3249T-ZS-IL
Part number
IPC-HFW3249T-ZS-IL
EAN / UPC
6939554927096
Also known as
Dahua Technology WizSense 2MP Smart Dual Light Vari-focal Bullet Network Camera

Specifications

117 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Built-in lightYes
Dynamic range120 dB
Smart search functionYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
Fog proofYes

Camera

Minimum illumination0.0002 lx
Angle of rotation360°
Lens viewing angle, horizontal104 - 29°
Lens viewing angle, vertical54 - 16°
Lens viewing angle, diagonal125 - 34°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Maximum aperture number1.4
Closest focusing distance0.1 m
Detect distance (tele)150 m
Detect distance (wide)45.7 m
Identify distance (tele)15 m
Identify distance (wide)4.6 m
Observe distance (tele)60 m
Observe distance (wide)18.3 m
Recognize distance (tele)30 m
Recognize distance (wide)9.1 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, H.264H, H.264B, M-JPEG
Supported graphics resolutions1920 x 1080 (HD 1080), 1280 x 960, 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240
Supported video modes1080p, 960p, 720p, 576p, 480p, 240p
Frame rate30 fps
Video streamingYes
Image rotation angles270°
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Image stabilizer typeElectronic Image Stabilization (EIS)
Gain control typeAuto
Anti-flicker self-adaption (AFSA)Yes
Back Light Compensation (BLC)Yes
Bit rate3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR), Adaptive Bit Rate (ABR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Scene self-adaptation (SSA)Yes
Smart IRYes

Audio

Built-in speaker(s)Yes
Audio system1-way
Audio codecsG.711a; G.711Mu; PCM; G.726; G.723
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity256 MB
RAM capacity1000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire, Vehicle detection, Human detection, Face detection
MirrorYes
Motion detection systemSMD 4.0
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmartPSS Lite; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2.8 W
Power consumption (max)8.9 W
Power consumption (Power over Ethernet (PoE))4.4 W
Power consumption (Power over Ethernet (PoE)) (max)11.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width90.7 mm
Height90.7 mm
Length238.5 mm
Weight835 g

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging data

Package weight1.09 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE11 Chrome Firefox

Technical details

IrisYes
Lens typeVarifocal
Number of video streams3
