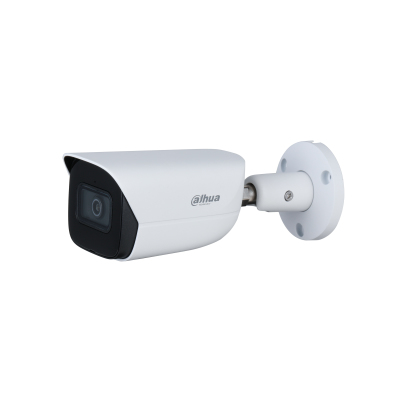

Dahua Technology WizSense IPC-HFW3241E-AS security camera Bullet IP security camera Outdoor
Dahua Technology

WizSense IPC-HFW3241E-AS security camera Bullet IP security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model IPC-HFW3241E-AS

91 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight590 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
590 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3241E-AS
Part number
IPC-HFW3241E-AS
Also known as
Dahua Technology WizSense IPC-HFW3241E-AS security camera Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

91 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.002 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal126°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance38.6 m
Observe distance15.4 m
Recognize distance7.7 m
Identify distance3.9 m
Maximum aperture number1.6
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresTripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection

Power

Power source typeDC, PoE
Power consumption (max)5.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width70.5 mm
Depth66.4 mm
Length192.7 mm
Weight590 g

Packaging data

Package weight780 g

Packaging content

Number of cameras1
