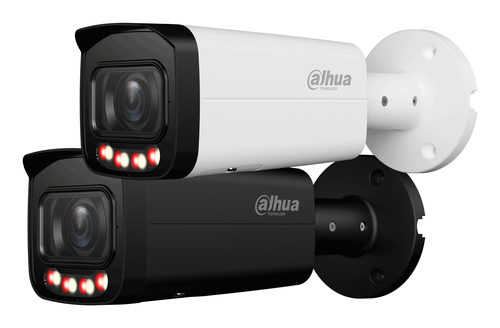

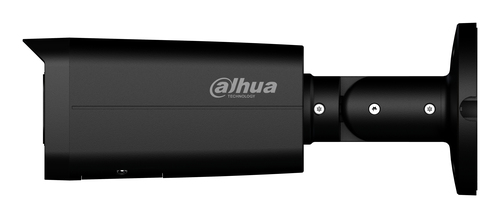

Dahua Technology WizSense IPC-HFW2849T-ZAS-IL Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HFW2849T-ZAS-IL Bullet IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/wall

Model IPC-HFW2849T-ZAS-ILPart no. IPC-HFW2849T-ZAS-IL-27135-BLACKEAN 6939554999895

104 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight760 g
  • ColourBlack
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
760 g
Colour
Black
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2849T-ZAS-IL
Part number
IPC-HFW2849T-ZAS-IL-27135-BLACK
EAN / UPC
6939554999895
Also known as
Dahua Technology WizSense IPC-HFW2849T-ZAS-IL Bullet IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

104 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack
Housing materialMetal
Protection featuresCorrosion resistant, Waterproof
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal114 - 32°
Lens viewing angle, vertical58 - 17°
Lens viewing angle, diagonal138 - 36°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance280 m
Observe distance112 m
Recognize distance56 m
Focal length range2.7 - 13.5 mm
Identify distance28 m
Maximum aperture number1.5
Closest focusing distance0.8 m
Fixed focal length2.7 mm

Night vision

Night visionYes
Night vision distance60 m
B/W night vision distance60 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2688 x 1512, 2880 x 1620, 3072 x 1728, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate12 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Network access storage (NAS)Yes
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2.6 W
Power consumption (max)10.2 W
Power consumption (Power over Ethernet (PoE))12.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width90.7 mm
Height90.7 mm
Length238.5 mm
Weight760 g

Packaging data

Package weight950 g

Packaging content

Number of cameras1
