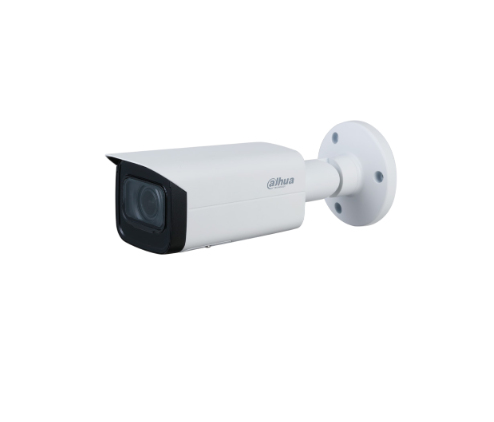

Dahua Technology Lite IPC-HFW2831TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor Ceiling/wall
Dahua Technology

Lite IPC-HFW2831TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor Ceiling/wall

Model IPC-HFW2831TP-ZS-27135-S2EAN 6939554977893

85 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight860 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
860 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2831TP-ZS-27135-S2
Part number
IPC-HFW2831TP-ZS-27135-S2
EAN / UPC
6939554977893
Also known as
Dahua Technology Lite IPC-HFW2831TP-ZS-27135-S2 security camera Bullet IP security camera Indoor & outdoor Ceiling/wall

Specifications

85 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.008 lx
Angle of rotation360°
Lens viewing angle, horizontal113 - 31°
Lens viewing angle, vertical58 - 17°
Lens viewing angle, diagonal138 - 36°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 -1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Focal length range27 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)280 m
Detect distance (wide)85.3 m
Identify distance (tele)28 m
Identify distance (wide)8.5 m
Observe distance (tele)112 m
Observe distance (wide)34.1 m
Recognize distance (tele)56 m
Recognize distance (wide)17 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (typical)9.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width90.4 mm
Depth244.1 mm
Height90.4 mm
Weight860 g

Packaging data

Package weight1.1 kg

Packaging content

Number of cameras1
