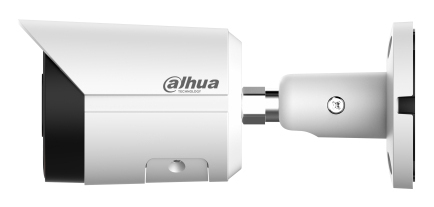

Dahua Technology WizSense IPC-HFW2549S-S-IL-0360B security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HFW2549S-S-IL-0360B security camera Bullet IP security camera Indoor & outdoor

2960 x 1668 pixels Ceiling/wall

Model IPC-HFW2549S-S-IL-0360BEAN 6923172581594

103 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight470 g
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
470 g
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2549S-S-IL-0360B
Part number
IPC-HFW2549S-S-IL-0360B
EAN / UPC
6923172581594
Also known as
Dahua Technology WizSense IPC-HFW2549S-S-IL-0360B security camera Bullet IP security camera Indoor & outdoor 2960 x 1668 pixels Ceiling/wall

Specifications

103 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
Protection featuresWaterproof
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal92°
Lens viewing angle, vertical45°
Lens viewing angle, diagonal110°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance85.4 m
Observe distance34.2 m
Recognize distance17.1 m
Identify distance8.5 m
Maximum aperture number1.6
Closest focusing distance1.7 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance30 m
B/W night vision distance30 m
LED typeIR/White
Number of illumination LEDs2

Video

Maximum resolution2960 x 1668 pixels
Total megapixels5 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2688 x 1512, 2880 x 1620
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate12 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Number of users20 user(s)
Client interoperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Network access storage (NAS)Yes
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)2.2 W
Power consumption (max)4.6 W
Power consumption (Power over Ethernet (PoE))5.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Height70 mm
Length166.2 mm
Weight470 g

Packaging data

Package weight590 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8, IE9, IE11 Chrome Firefox, Safari

Technical details

Lens mount interfaceM12
Number of video streams2
