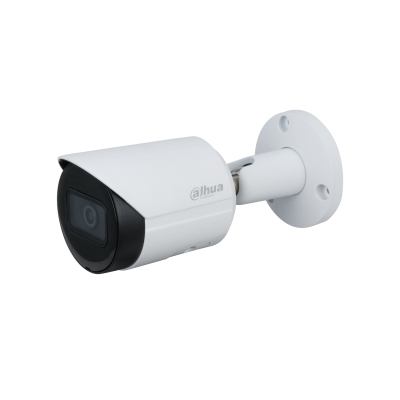

Dahua Technology Lite IPC-HFW2531S-S-0360B-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HFW2531S-S-0360B-S2 security camera Bullet IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling/wall

Model IPC-HFW2531S-S-0360B-S2EAN 6939554978135

94 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2531S-S-0360B-S2
Part number
IPC-HFW2531S-S-0360B-S2
EAN / UPC
6939554978135
Also known as
Dahua Technology Lite IPC-HFW2531S-S-0360B-S2 security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

94 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance30 m
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation360°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical71°
Lens viewing angle, diagonal132°
Tilt angle range0 - 270°
White balanceAuto, Daylight, Natural, Outdoor, Street lamp
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Progressive scanYes

Panoramic camera

Number of Privacy masking areas (panoramic camera)4

Lens system

Number of lenses1
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Focal length range2.8 - 3.6 mm
Identify distance5.6 m
Maximum aperture number1.6
Closest focusing distance0.9 m
Detect distance (tele)80 m
Detect distance (wide)56 m
Fixed focal length2.8 mm
Identify distance (tele)8 m
Identify distance (wide)5.6 m
Observe distance (tele)32 m
Observe distance (wide)22.4 m
Recognize distance (tele)16 m
Recognize distance (wide)11.2 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944, 2688 x 1520
Supported video modes720p, 1080p
Frame rate20 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps–8192 Kbps, H.265: 12 Kbps– 8192 Kbps
Highlight Compensation (HLC)Yes
Privacy maskingYes

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)5.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Depth70 mm
Height166.2 mm
Diameter7 cm
Weight480 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging data

Package weight570 g

Packaging content

Number of cameras1
