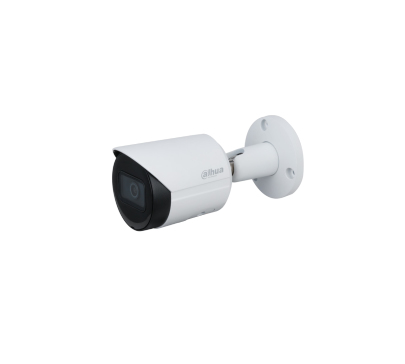

Lite IPC-HFW2531S-S-0280B-S2 security camera IP security camera Indoor & outdoor
2592 x 1944 pixels Wall
Model IPC-HFW2531S-S-0280B-S2EAN 6939554978128
54 specifications
- ConnectivityWired
- TypeIP security camera
- Weight480 g
- ColourBlack, White
- Mounting typeWall
- Camera tilt controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 480 g
- Colour
- Black, White
- Mounting type
- Wall
- Camera tilt control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HFW2531S-S-0280B-S2
- Part number
- IPC-HFW2531S-S-0280B-S2
- EAN / UPC
- 6939554978128
- Also known as
- Dahua Technology Lite IPC-HFW2531S-S-0280B-S2 security camera IP security camera Indoor & outdoor 2592 x 1944 pixels Wall
Specifications
54 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 30 m |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera tilt control | Yes |
| Minimum illumination | 0.008 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 103° |
| Lens viewing angle, vertical | 71° |
| Lens viewing angle, diagonal | 132° |
| Tilt angle range | 0 - 270° |
| White balance | Auto, Daylight, Natural |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 56 m |
| Observe distance | 22.4 m |
| Recognize distance | 11.2 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944, 2688 x 1520 |
| Supported video modes | 720p, 1080p |
| Frame rate | 20 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Maximum memory card size | 256 GB |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.7 mm |
| Depth | 166.2 mm |
| Height | 68.7 mm |
| Diameter | 7 cm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 570 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
