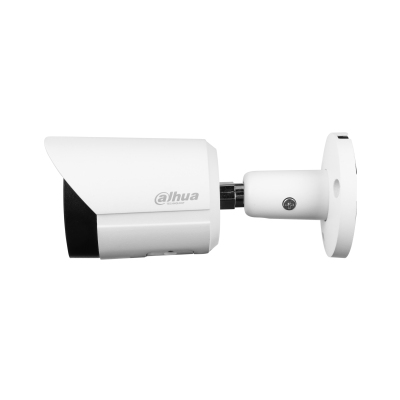

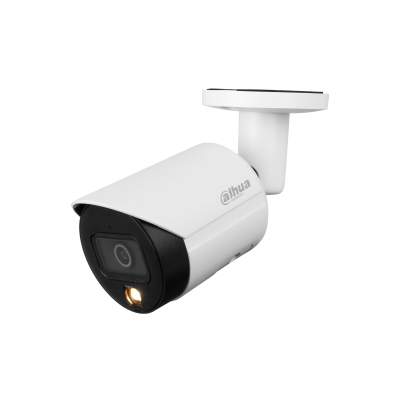

Dahua Technology Lite IPC-HFW2439SP-SA-LED-0360B-S2 Bullet IP security camera Outdoor
Dahua Technology

Lite IPC-HFW2439SP-SA-LED-0360B-S2 Bullet IP security camera Outdoor

2688 x 1520 pixels Wall/Pole

Model IPC-HFW2439SP-SA-LED-0360B-S2Part no. DH-IPC-HFW2439SP-SA-LED-0360B-S2EAN 6939554990458

88 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight473 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
473 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2439SP-SA-LED-0360B-S2
Part number
DH-IPC-HFW2439SP-SA-LED-0360B-S2
EAN / UPC
6939554990458
Also known as
Dahua Technology Lite IPC-HFW2439SP-SA-LED-0360B-S2 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall/Pole

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorBullet
Mounting typeWall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.004 lx
Angle of rotation360°
Lens viewing angle, horizontal81°
Lens viewing angle, vertical44°
Lens viewing angle, diagonal97°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100000
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses2
Detect distance72 m
Observe distance28.8 m
Recognize distance14.4 m
Identify distance7.2 m
Minimum aperture number1
Closest focusing distance1.8 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeWhite
Number of illumination LEDs1

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes1080p
Frame rate30 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio formats supportedG.711 A-law, G.711u, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)6.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter7 cm
Length166.2 mm
Weight473 g

Packaging data

Package weight574 g

Packaging content

Number of cameras1
