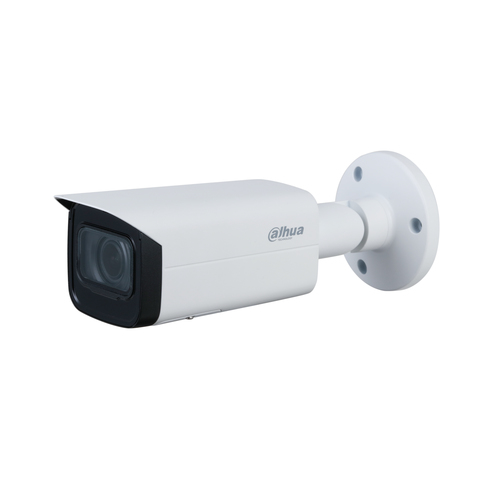

Dahua Technology Lite IPC-HFW2431T-ZS-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HFW2431T-ZS-S2 security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HFW2431T-ZS-S2EAN 6939554974694

94 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight860 g
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
860 g
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2431T-ZS-S2
Part number
IPC-HFW2431T-ZS-S2
EAN / UPC
6939554974694
Also known as
Dahua Technology Lite IPC-HFW2431T-ZS-S2 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

94 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
CertificationCE-LVD, CE-EMC, FCC, UL/CUL

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal124°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Custom modes, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)220 m
Detect distance (wide)64 m
Identify distance (tele)22 m
Identify distance (wide)6.4 m
Observe distance (tele)88 m
Observe distance (wide)25.6 m
Recognize distance (tele)44 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes240p, 480p, 576p, 720p, 960p, 1080p, 1440p, 1520p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate12 kbps - 6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour, ONVIF, CGI, P2P, Milestone, Genetec
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)9.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter9.04 cm
Length244.1 mm
Weight860 g

Packaging data

Package weight1.1 kg
Package typeBox

Packaging content

Number of cameras1
