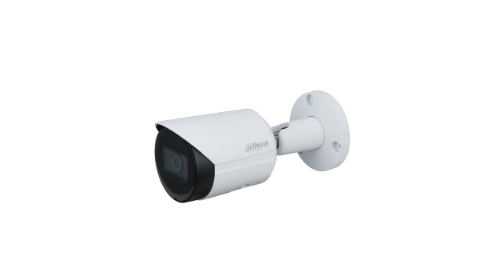

Dahua Technology Lite IPC-HFW2230SP-S-0280B-S2-QH3 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HFW2230SP-S-0280B-S2-QH3 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HFW2230SP-S-0280B-S2-QH3EAN 6923172535320

85 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW2230SP-S-0280B-S2-QH3
Part number
IPC-HFW2230SP-S-0280B-S2-QH3
EAN / UPC
6923172535320
Also known as
Dahua Technology Lite IPC-HFW2230SP-S-0280B-S2-QH3 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

85 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 -1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance43.9 m
Observe distance17.5 m
Recognize distance8.8 m
Focal length range2.8 mm
Identify distance4.4 m
Closest focusing distance0.7 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)1.8 W
Power consumption (Power over Ethernet (PoE))2.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width68.7 mm
Depth166.2 mm
Diameter7 cm
Weight480 g

Packaging data

Package weight570 g

Packaging content

Number of cameras1
