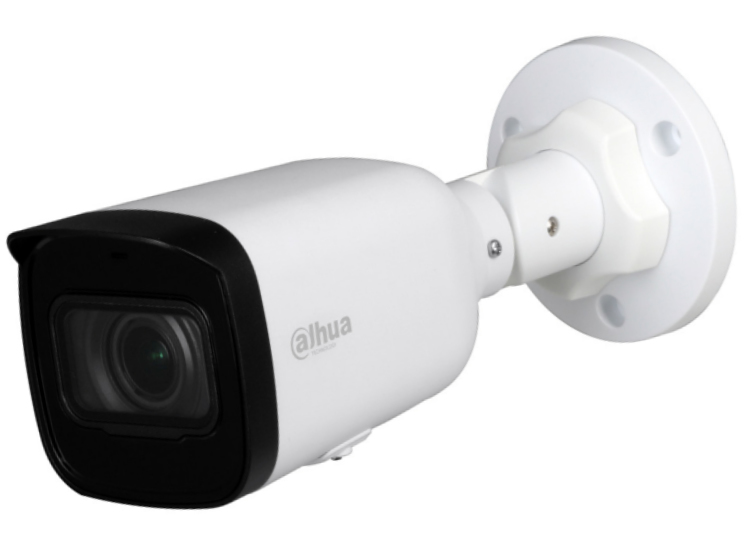

Dahua Technology Entry IPC-HFW1431T1-ZS-S4 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Entry IPC-HFW1431T1-ZS-S4 security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HFW1431T1-ZS-S4

90 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight440 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
440 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW1431T1-ZS-S4
Part number
IPC-HFW1431T1-ZS-S4
Also known as
Dahua Technology Entry IPC-HFW1431T1-ZS-S4 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

90 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.03 lx
Angle of rotation360°
Lens viewing angle, horizontal98 - 31°
Lens viewing angle, vertical55 -18°
Lens viewing angle, diagonal116 - 36°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100000
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Panoramic camera

Bit rate control (panoramic camera)Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Closest focusing distance (panoramic camera)0.8 m

Lens system

Number of lenses1
Focal length range2.8 - 12 mm
Maximum aperture number1.7
Detect distance (tele)200 m
Detect distance (wide)66 m
Identify distance (tele)20 m
Identify distance (wide)6.6 m
Observe distance (tele)80 m
Observe distance (wide)26.4 m
Recognize distance (tele)40 m
Recognize distance (wide)13.2 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Supported graphics resolutions704 x 480, 704 x 576, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity128 MB

Security

MirrorYes
Motion sensorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (max)7.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 55 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Depth243.5 mm
Diameter9.07 cm
Weight440 g

Packaging data

Package weight690 g

Packaging content

Number of cameras1
