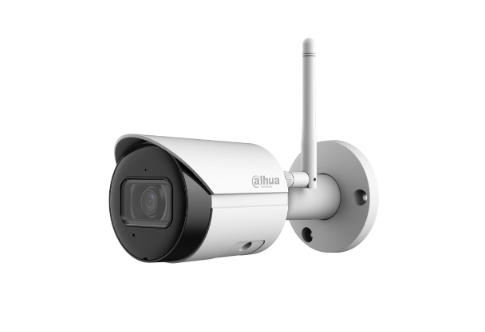

Dahua Technology IPC-HFW1430DSP-SAW-0280B Bullet IP security camera Indoor & outdoor
Dahua Technology

IPC-HFW1430DSP-SAW-0280B Bullet IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model IPC-HFW1430DSP-SAW-0280BPart no. IPC-HFW1430DS-SAW-0280BEAN 6923172539915

88 specifications
  • Memory64 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight477.9 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
64 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
477.9 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW1430DSP-SAW-0280B
Part number
IPC-HFW1430DS-SAW-0280B
EAN / UPC
6923172539915
Also known as
Dahua Technology IPC-HFW1430DSP-SAW-0280B Bullet IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Antenna typeExternal
Antennas quantity1
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
International Protection (IP) codeIP67

Camera

Lens viewing angle, horizontal90°
Lens viewing angle, vertical50°
Lens viewing angle, diagonal107°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 -1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2560 x 1440 pixels

Lens system

Number of lenses1
Detect distance68 m
Observe distance27.2 m
Recognize distance13.6 m
Focal length range2.8 mm
Identify distance6.8 m
Maximum aperture number2
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming methodMulticast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Smartphone/tablet remote supportYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC
Power consumption (typical)2 W
Power consumption (max)4.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Depth166.2 mm
Height128.6 mm
Diameter7 cm
Weight477.9 g

Packaging data

Package weight696.5 g

Packaging content

Number of cameras1
