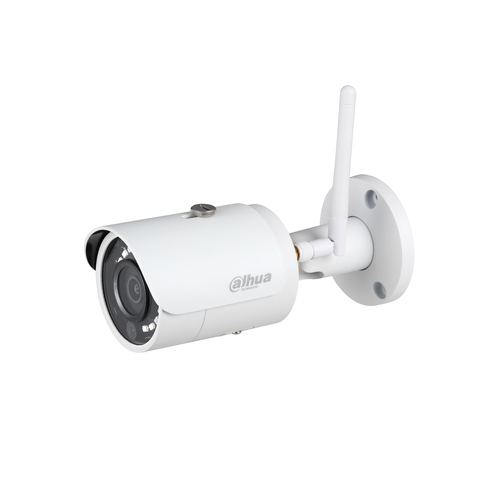

Dahua Technology Consumer IPC-HFW1235S-W-S2 Bullet IP security camera Indoor & outdoor
Dahua Technology

Consumer IPC-HFW1235S-W-S2 Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HFW1235S-W-S2Part no. IPC-HFW1235S-W-S2 3.6 MM

91 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight431 g
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
431 g
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW1235S-W-S2
Part number
IPC-HFW1235S-W-S2 3.6 MM
Also known as
Dahua Technology Consumer IPC-HFW1235S-W-S2 Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

91 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN62368-1, CE-EMC, CE-RED, FCC

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.1128 lx
Lens viewing angle, horizontal93°
Lens viewing angle, vertical48°
Lens viewing angle, diagonal114°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Maximum aperture number2
Closest focusing distance0.7 m
Detect distance (wide)51.1 m
Fixed focal length3.6 mm
Identify distance (wide)5.1 m
Observe distance (wide)20.4 m
Recognize distance (wide)10.2 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs18

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes240p, 480p, 720p, 960p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate24 kbps - 8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)49.05 dB

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, QoS, NTP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

MirrorYes
Security algorithmsHTTPS
Video motion detectionYes

Management features

Web browserYes
Management softwareDMSS

Power

Power source typeDC
Power consumption (max)7.18 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 50 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width164.9 mm
Depth70 mm
Height125.2 mm
Weight431 g

Packaging data

Package weight708 g

Packaging content

Number of cameras1
